Descriptions

BM-2C biological microscope uses very widely. It is suitable to biology, pathology, bacteriology observation, teaching and professional research, clinical experiment and routine medical examination for medical and health institutions, labs, graduate institutes and colleges. It is a necessary instrument for the schools’ labs too.

BM-2C biological microscope’s design is advanced, sculpt is novelty, adopts different kinds of techniques to make microscope is easy to use, safety and credibility.

Specifications

1. Eyepieces

Type	Magnification	Field(mm)
Plan	10×	φ18
	16×	φ12

2. Objectives

Type	Magnification	N.A. (mm)	W.D. (mm)
Objectives	4×	0.10	37.5
	10×	0.25	7.31
	40×	0.65	0.63
	100×(oil)	1.25	0.18

3. Optical magnification: 40×—1600×

4. Articulated type binocular, interpupillary distance adjustment range: 55-75mm, inclined 30o, turning to 360o

5.Condenser: N.A. 1.25, Abbe condenser with Iris Diaphragm
6. Filters: blue, yellow, green and frosted
7. Stage size: 125×130mm move range: 60×30mmmm, vernier: 0.1mm

Coarse/fine focusing hand wheel, focusing range: 35mm, minimum division: 0.002mm

8. Electronic light source: 6V/20W with continuous adjustable brightness

9. Anti-fungus: yes.

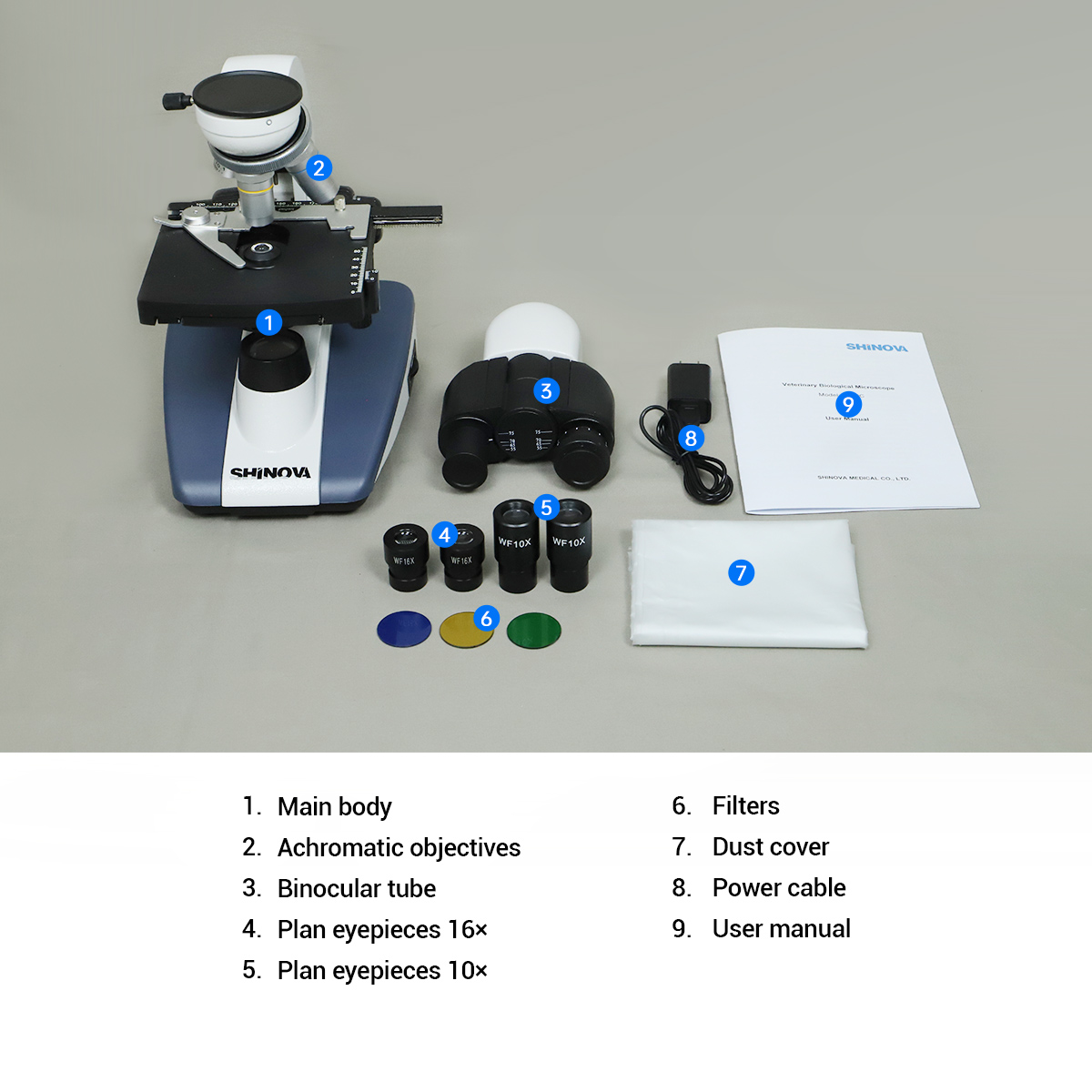

Configurations

1. Microscope main body                                 1 unit

2. Achromatic objectives: 4×, 10×, 40×, 100× (oil)  1 pc each

3. Binocular tube                                            1 pc

4. Plan eyepieces: 10×, 16×                            1 double each

5. Filters: blue, yellow, green and frosted glass    1 piece each

6. Oil(compounded)                                        1 bottle

7. Alternate halogen lamp                                1 pc
