Descriptions

Features:

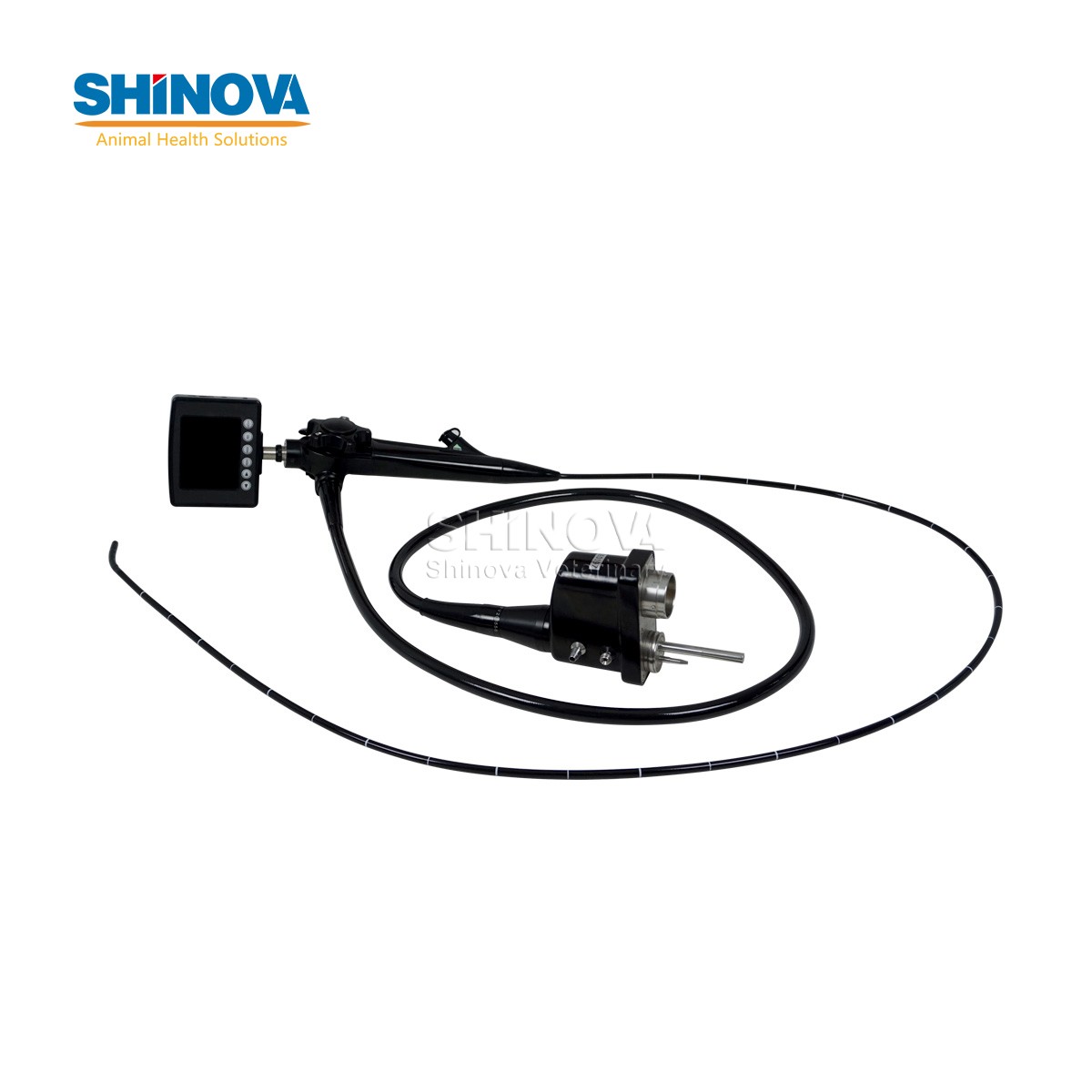

Portable design - 3.5 inches LCD Monitor:
Portable veterinary endoscope adopts the expanded viewing and recording capability. It enables observation without cables or peripherals, providing with a level of mobility that allows it be operated almost anywhere.

Excellent optical system:

High definition image: High-definition CMOS camera adopts the 990K pixels. It can capture high quality images.

Wider field of view technology can provide excellent and detailed images.

Large range angulations make it easier to observation.

3-100mm depth of view provides precise observation ability for both close and far objects.

Wider instrument channel:
It is easier to operate that a wide range of instruments can be used with the 2.0mm~3.2mm diameter channel.

Specifications

Model	View of Field	Depth of View	Working Length	Diameter of Insertion Tube	Diameter of Instrumental Channel	Range of Tip Bending
Gastrix 85V	120°	3-100mm	1500mm	8.5mm	2.0mm	210°(U),90°(D), 100°(R),100°(L)
Gastrix 92V	140°	3-100mm	1500mm	9.0mm	2.8mm	210°(U),90°(D), 100°(R),100°(L)
Colonix 98V	140°	3-100mm	3000mm	9.6mm	2.8mm	210°(U),90°(D), 100°(R),100°(L)
Colonix 130V	140°	3-100mm	3000mm	12.8mm	3.7mm	180°(U),180°(D), 160°(R),160°(L)
Colonix 135V	140°	3-100mm	3500mm	12.8mm	3.7mm	180°(U),180°(D), 160°(R),160°(L)
Gastrix 60V	120°	3-60mm	1000mm	5.8mm	2.0mm	180°(U),160°(D)

Configurations

Standard:

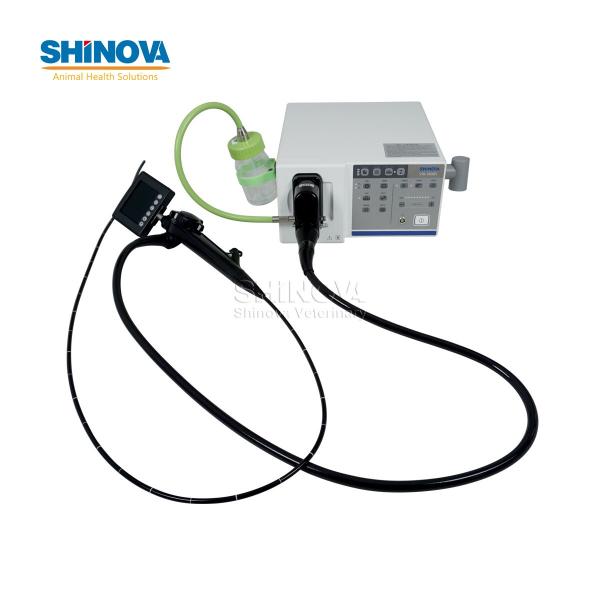

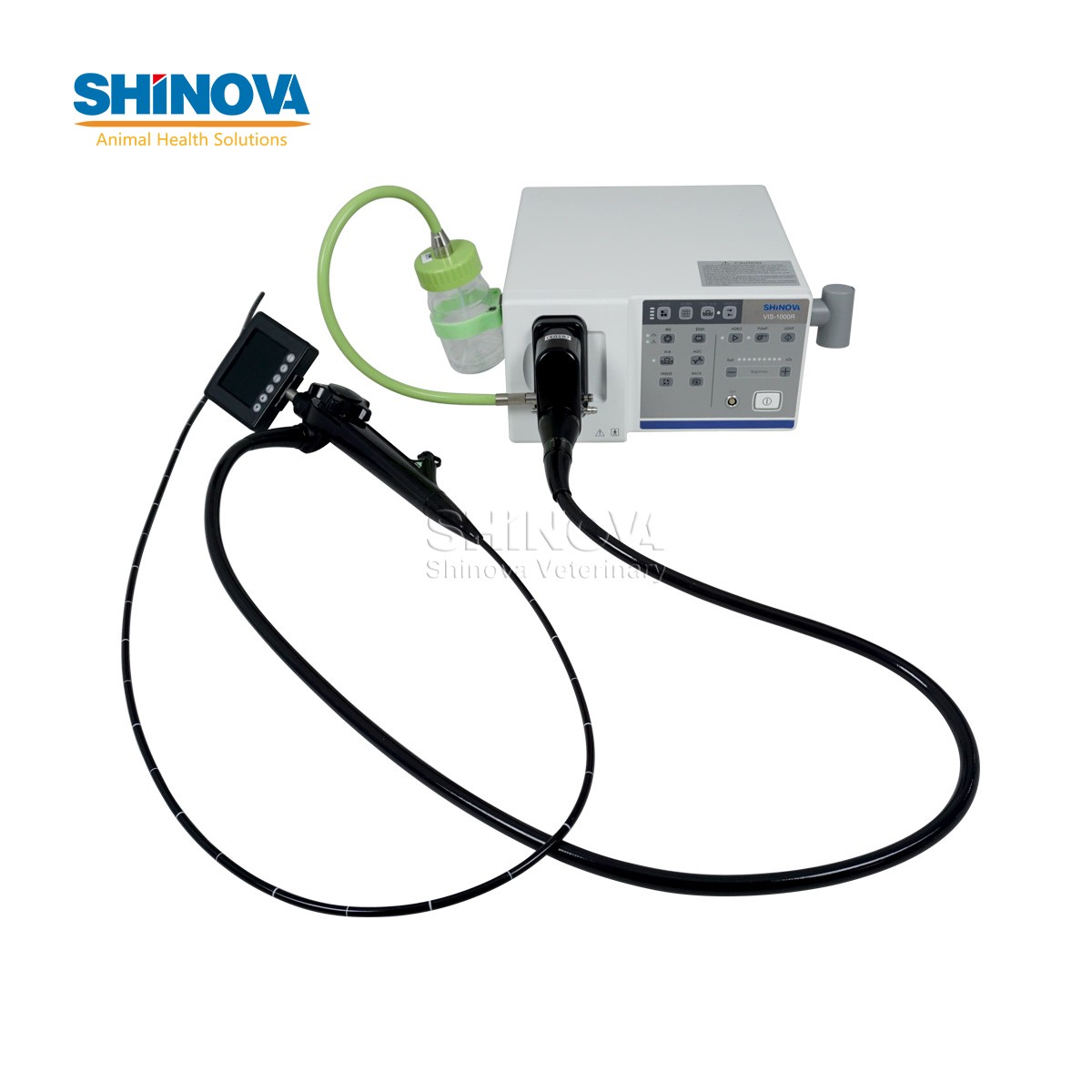

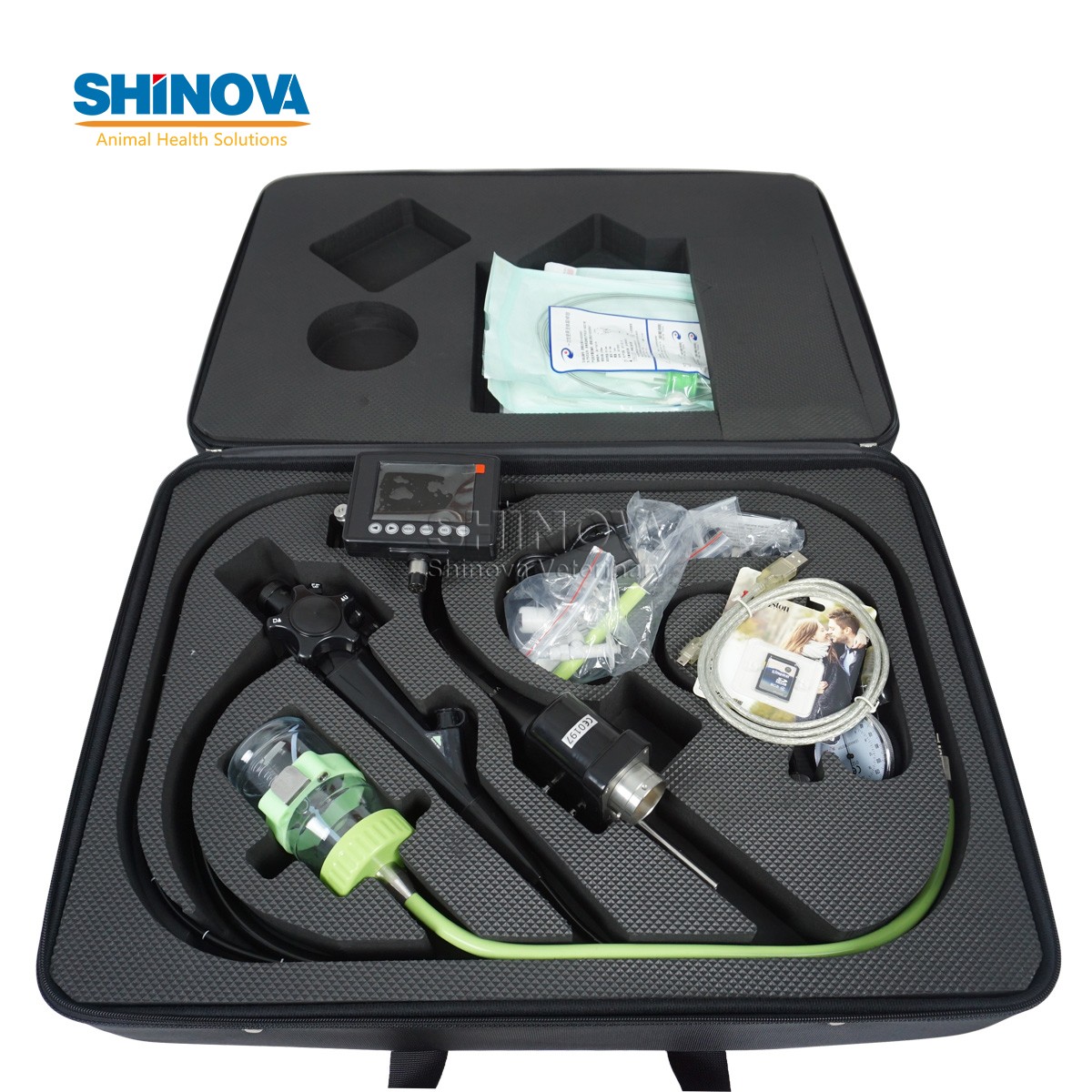

Veterinary endoscope, Image processor with light source, 3.5" LCD, Accessories (2×Biopsy Forceps,1×Cytological Brush,1×Cleaning Brush,1×Leakage Tester,1×Manual Syringe,2×Mouth Piece,2×Valve,4×Seal Rings, 1×Metal case)

Optional:
Autoclavable Grasping Forceps, Autoclavable Biopsy Forceps, Autoclavable Grasping Basket, LCD Monitor, Trolley
