    Shinova
    EOM-200SB
    Operating Microscope
    Get Latest Price!
    1 Pieces
    Within 15 days against payment
    T/T, L/C, Paypal, Cash, Other
    77*58*22
    18.00
    Cat,Dog,Equine,Bovine
    Operating Room,Exam Room

Descriptions

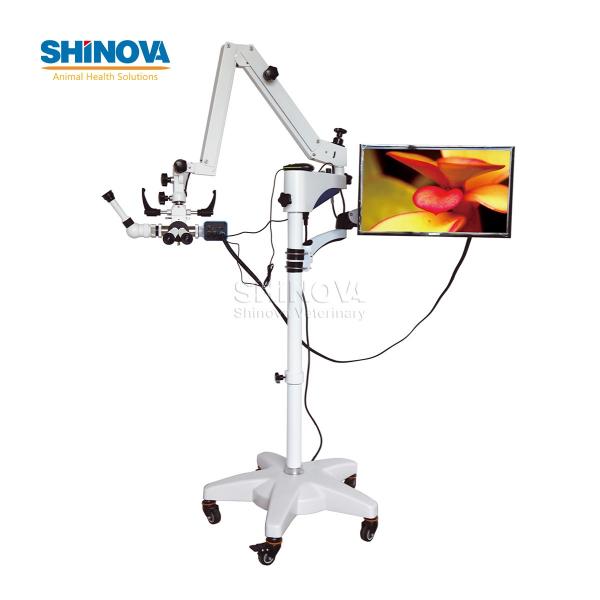

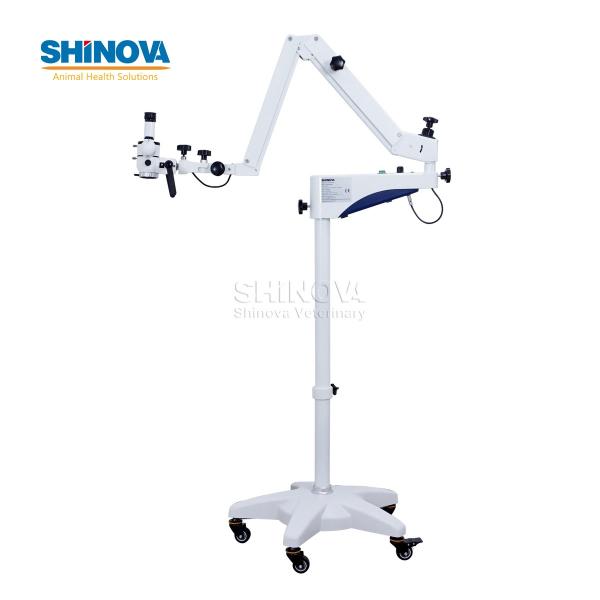

EOM Series Veterinary Operating Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ENT, dentistry, ophthalmology, gynecology and surgery.

Applications:
EOM-200S, EOM-200SB: Clinic applications for ENT
EOM-200T, EOM-200TB: Clinic applications for Dentistry and Ophthalmology

Specifications


Table of Specification for EOM Series Operation Microscope:

Item

EOM-200S(1)

EOM-200T(1)

EOM-200S

EOM-200T

EOM-200SB

EOM-200TB

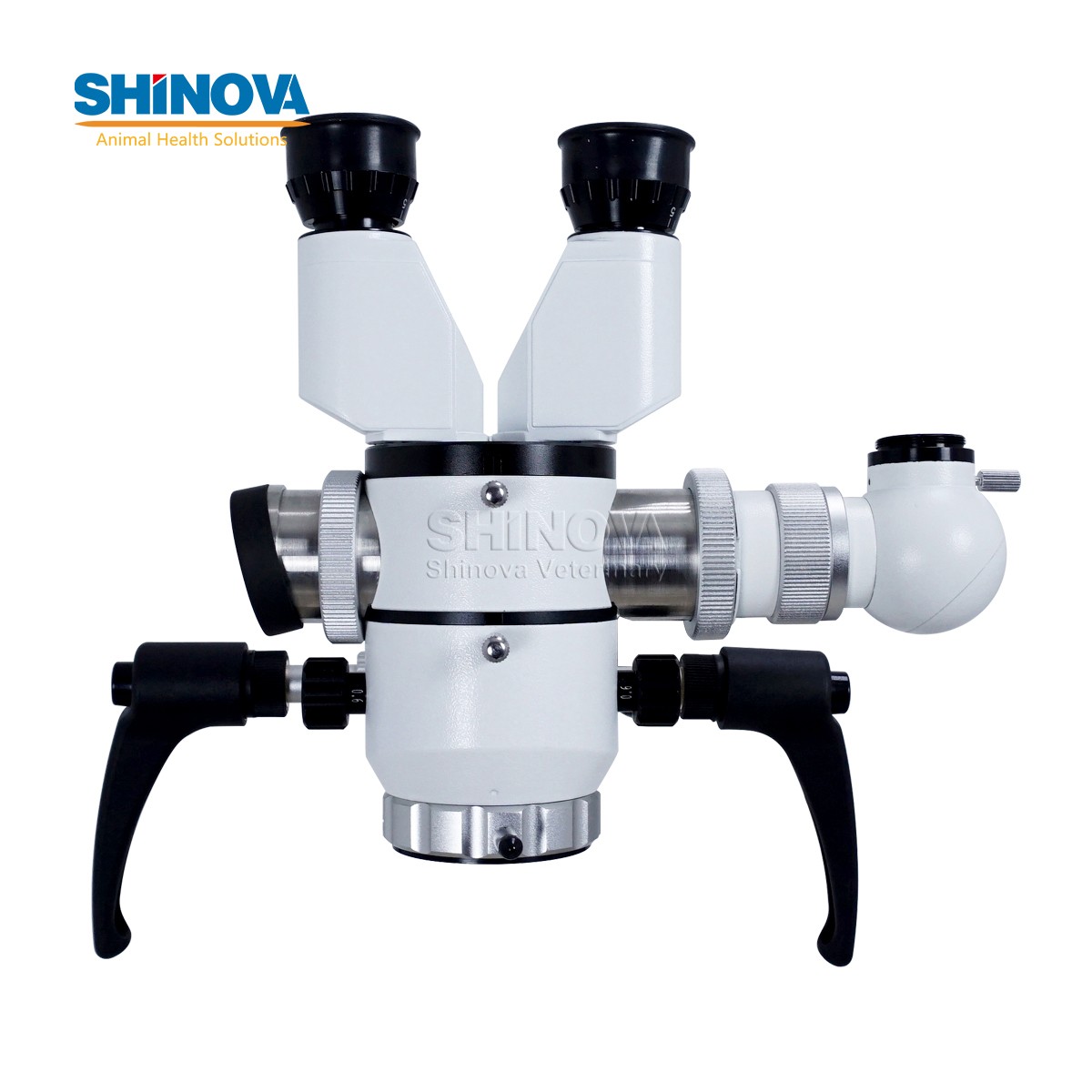

Binocular observation

Straight

45º Tilted

Straight

45º Tilted

Straight

45º Tilted

Magnification of binocular

6X

Interpupillary distance

50mm-80mm

Diopter

±5D

Magnification changer

3-step magnification change: 0.6X,1X,1.6X

Focal length of objective

Two objectives: F=200 & F=300mm (M45x0.75mm)

Total magnification

3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field

60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Beamsplitter

No

50:50 Beamsplitter

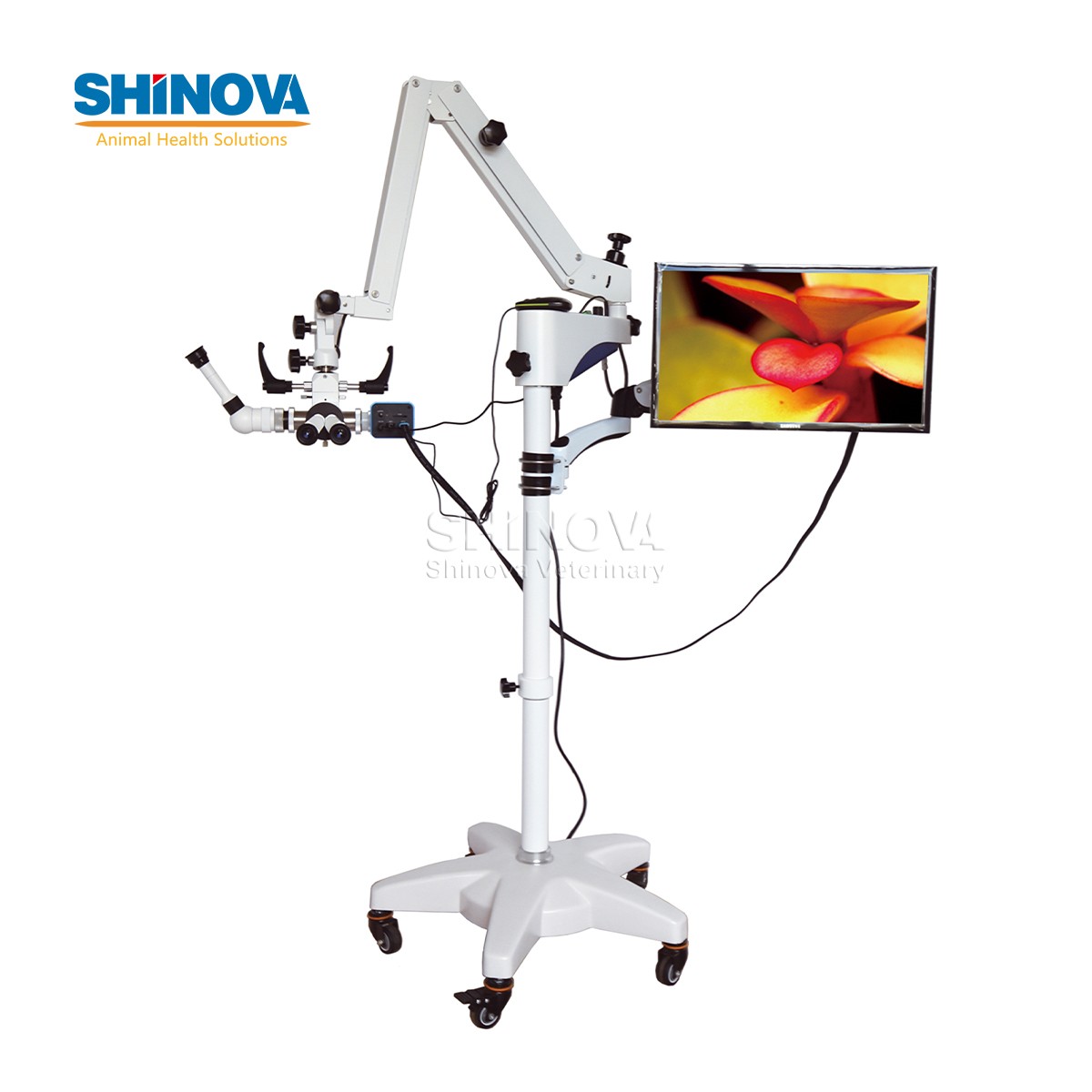

Video camera adapter

C-mount 1/3 inch video camera attachable

Fine focusing range

10mm

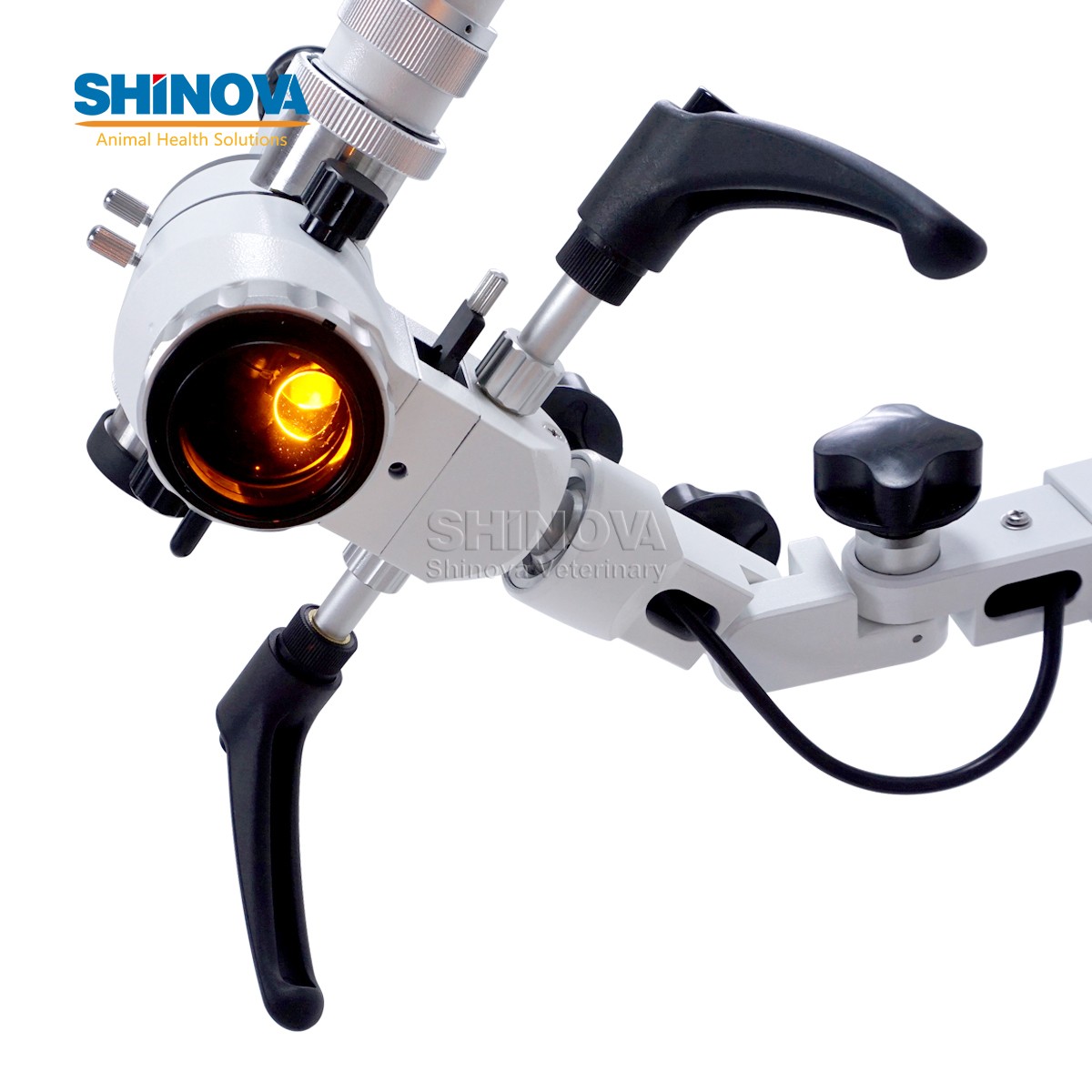

Filter

Built-in green and yellow filters

Balancing arm

2-part arm with universal joints

2-part arm with universal joints, counterweight adjustable and can be locked

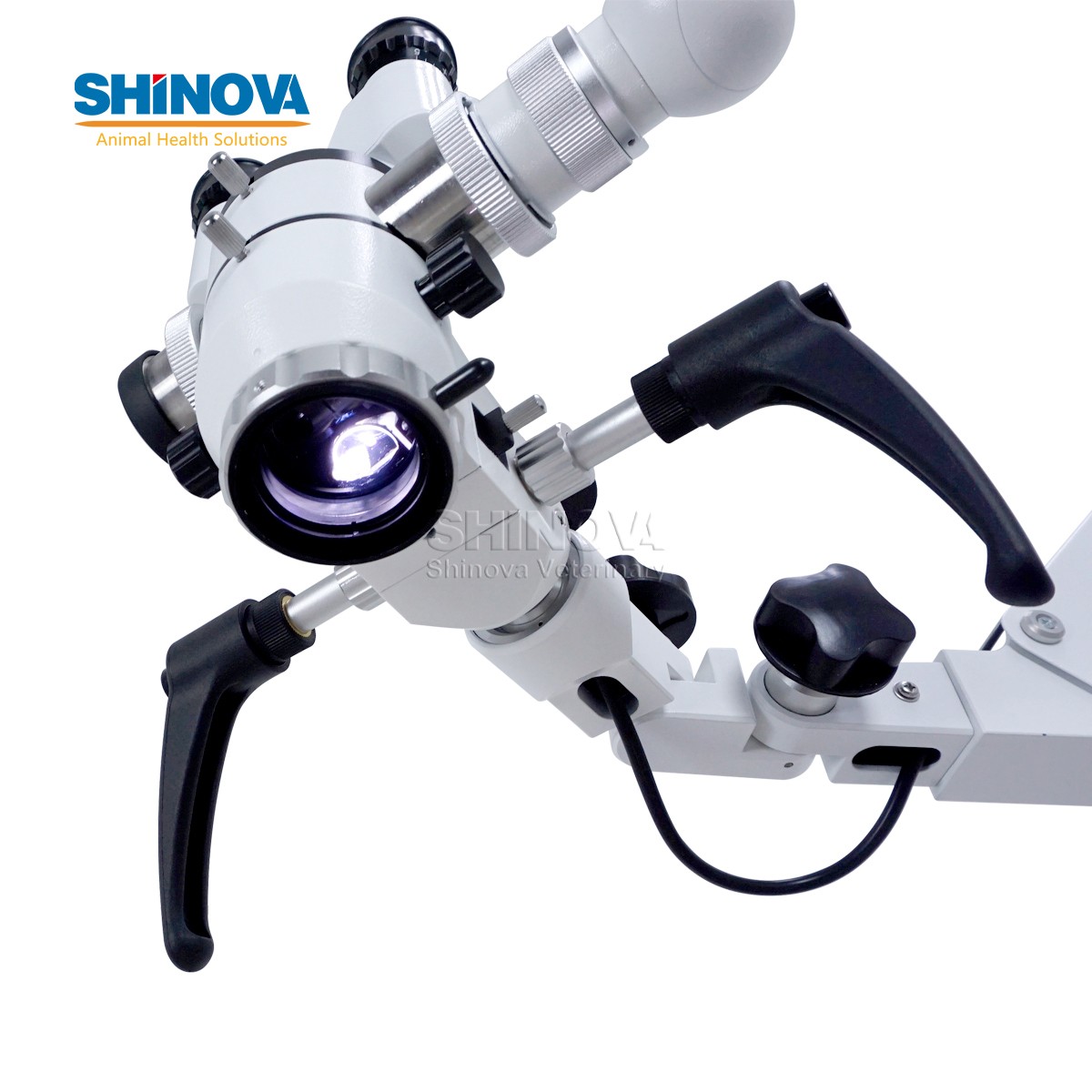

Illumination system

Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

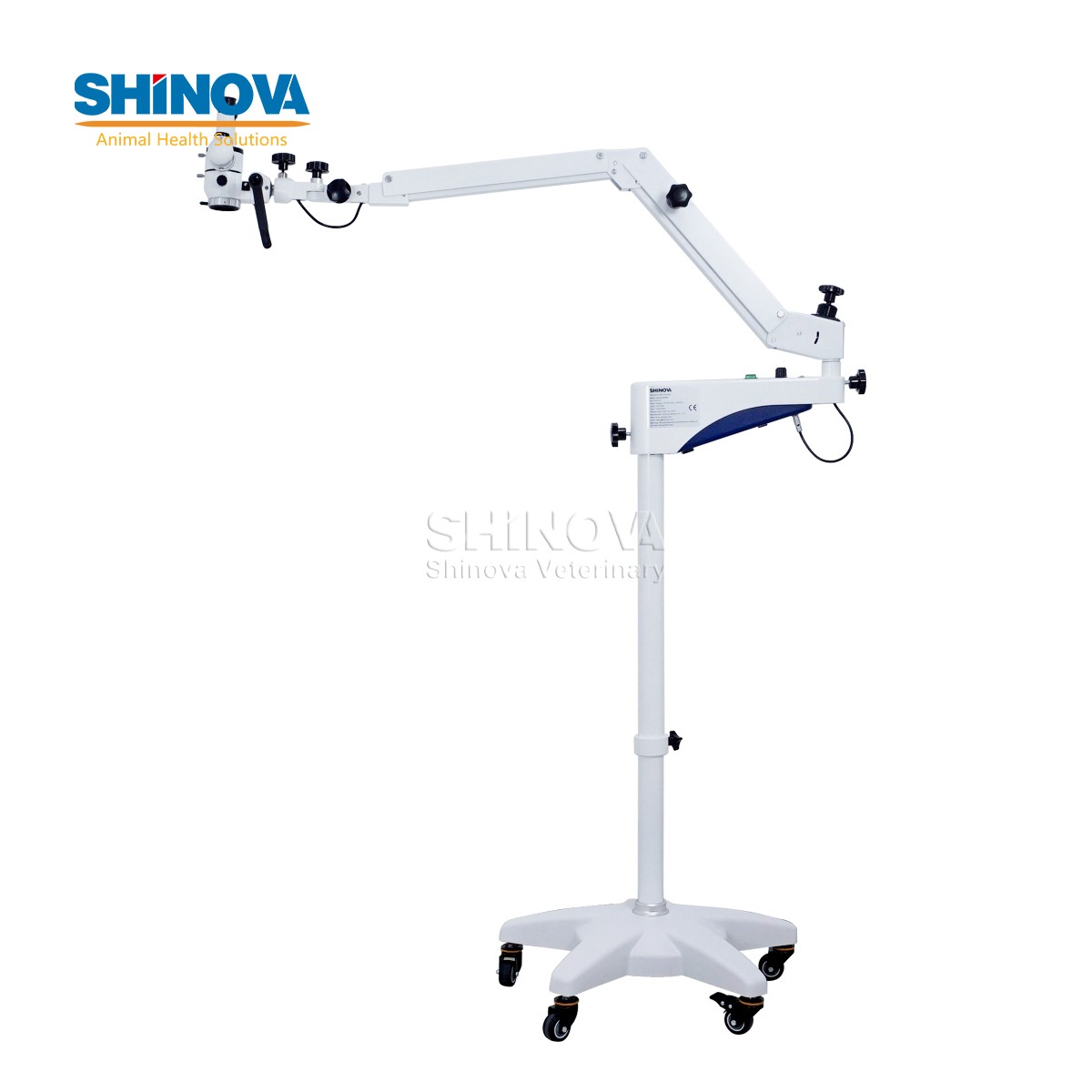

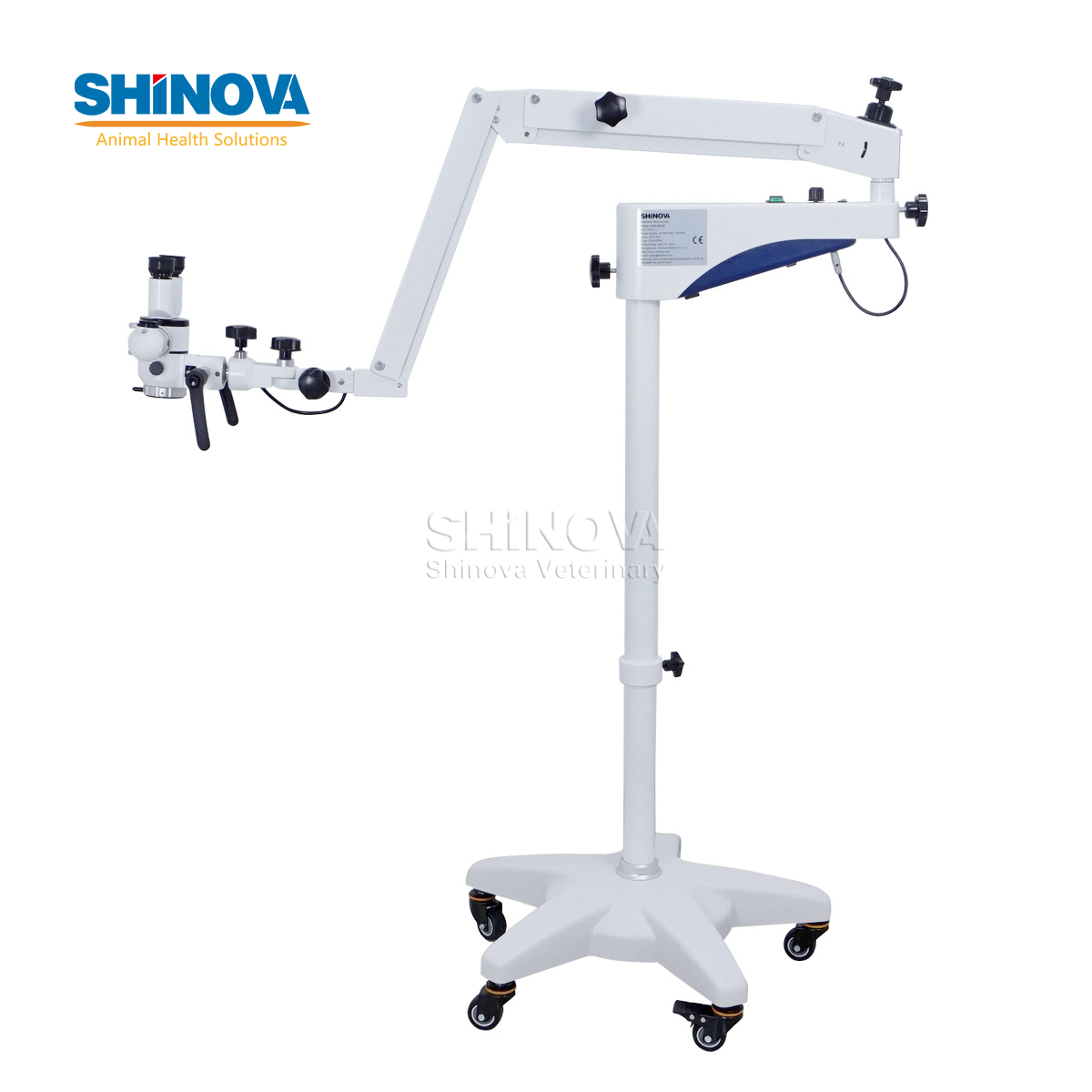

Stand

2-part column fitted on the five-star base with casters

Table mount clamp

2-part column fitted on the five-star base with casters

Optional accessories

Demonstrator,  Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket



Table of Optical Characteristics for EOM Series Operation Microscope:

Focal length of objective

F=200mm

F=250mm(optional)

F=300mm

F=400mm(optional)

Magnification on handwheel

1.6X

1X

0.6X

1.6X

1X

0.6X

1.6X

1X

0.6X

1.6X

1X

0.6X

Total magnification

12X

7.5X

4.7X

9.6X

6X

3.7X

8X

5X

3X

6X

3.8X

2.3X

Linear field (mm)

15.8

25.3

40.6

19.7

31.6

50.7

23.6

37.9

60.8

31.5

50.5

81

Exit pupil diameter (mm)

1.04

1.66

1.04

1.66

1.04

1.66

1.04

1.66

Exit pupil distance (mm)

15.3

Resolution (LP/mm)

67

44.5

29.7

60

35.4

27

47.2

31.5

23.6

35

27

19.8
