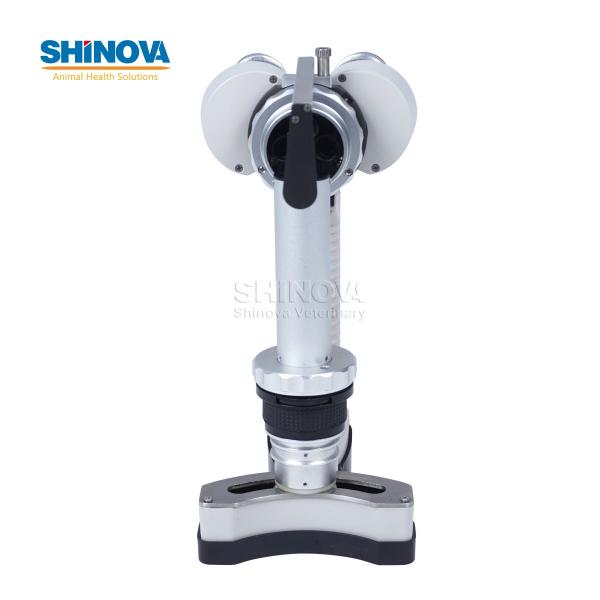

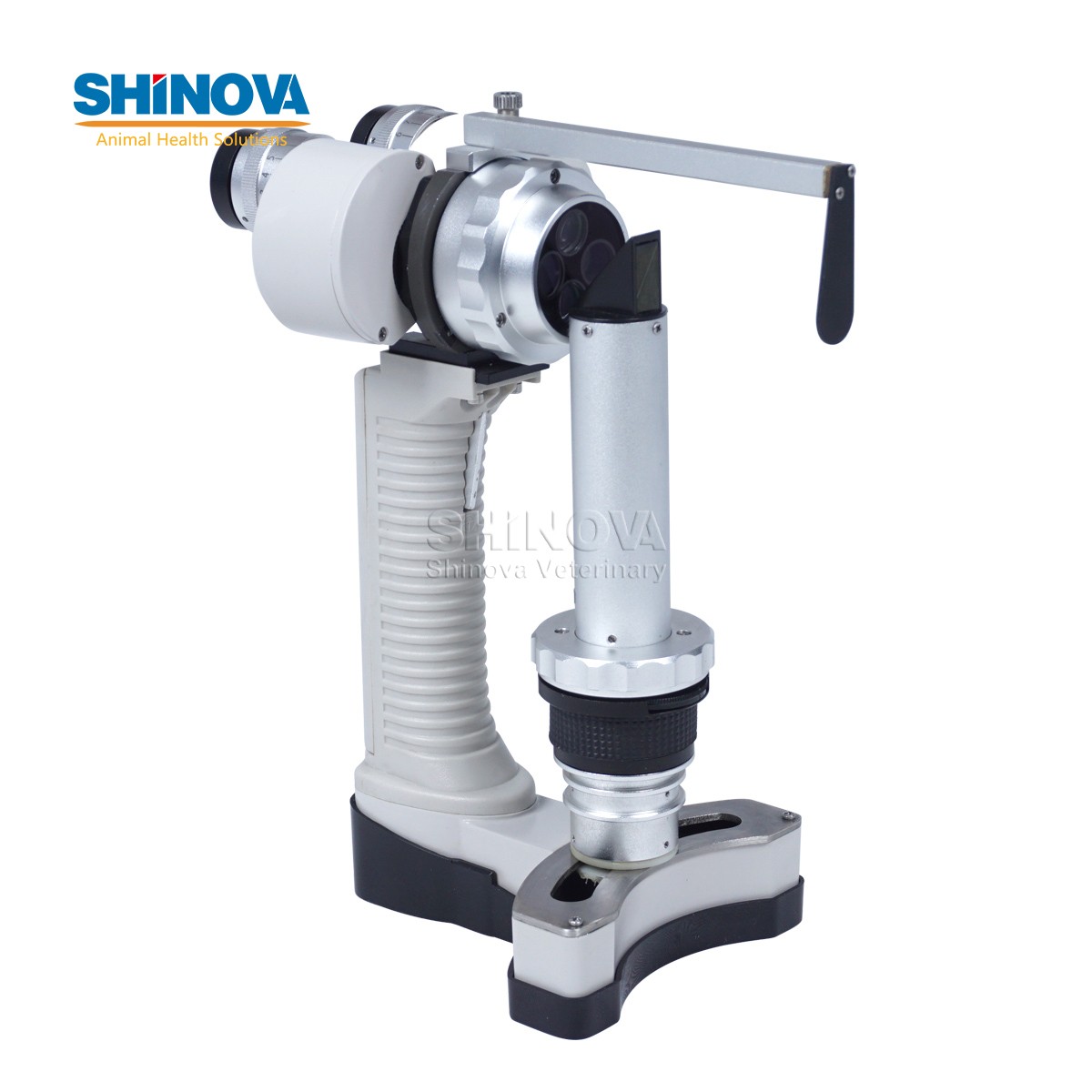

    • Veterinary Handheld Slit Lamp (3-Magnification)

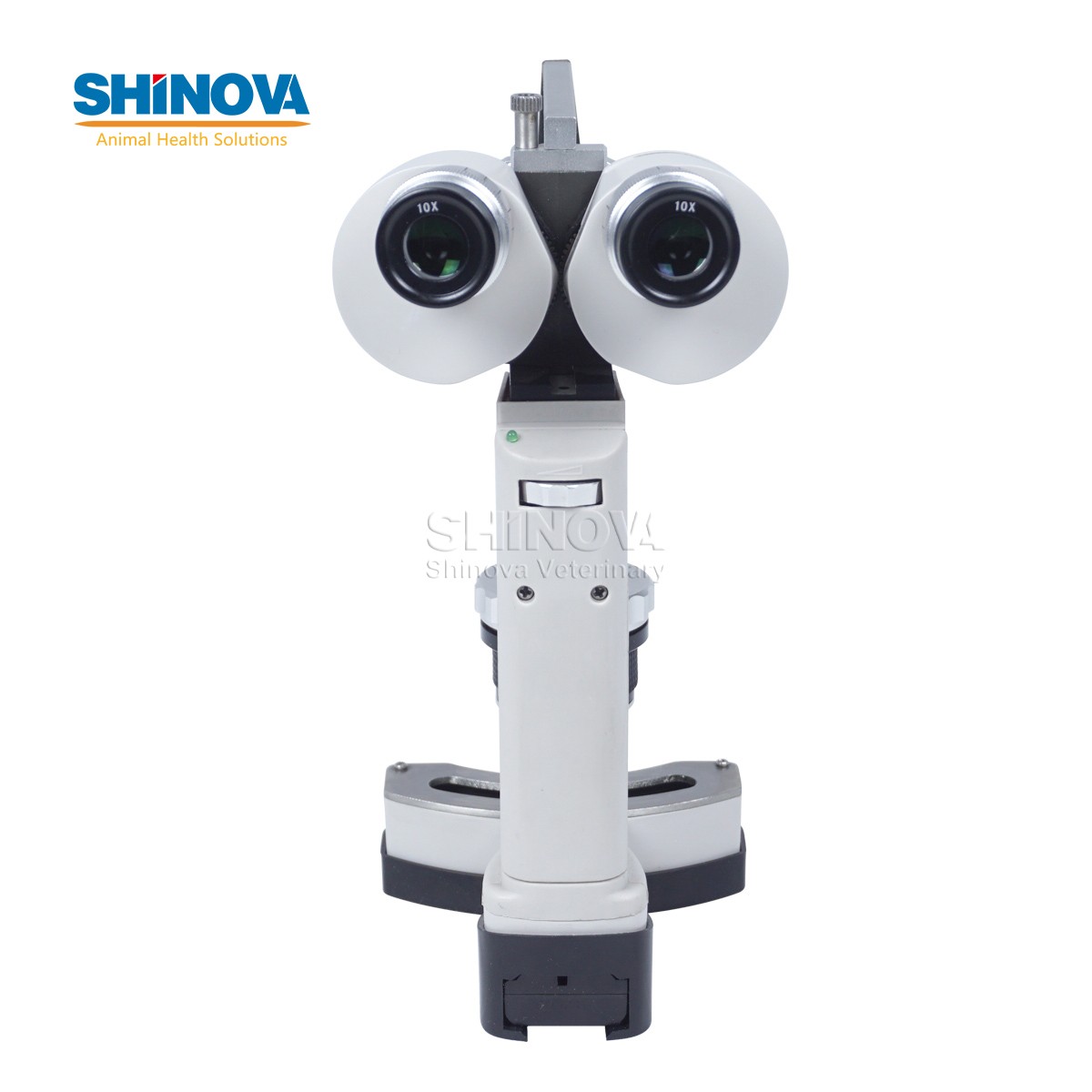

    • Veterinary Handheld Slit Lamp (3-Magnification)

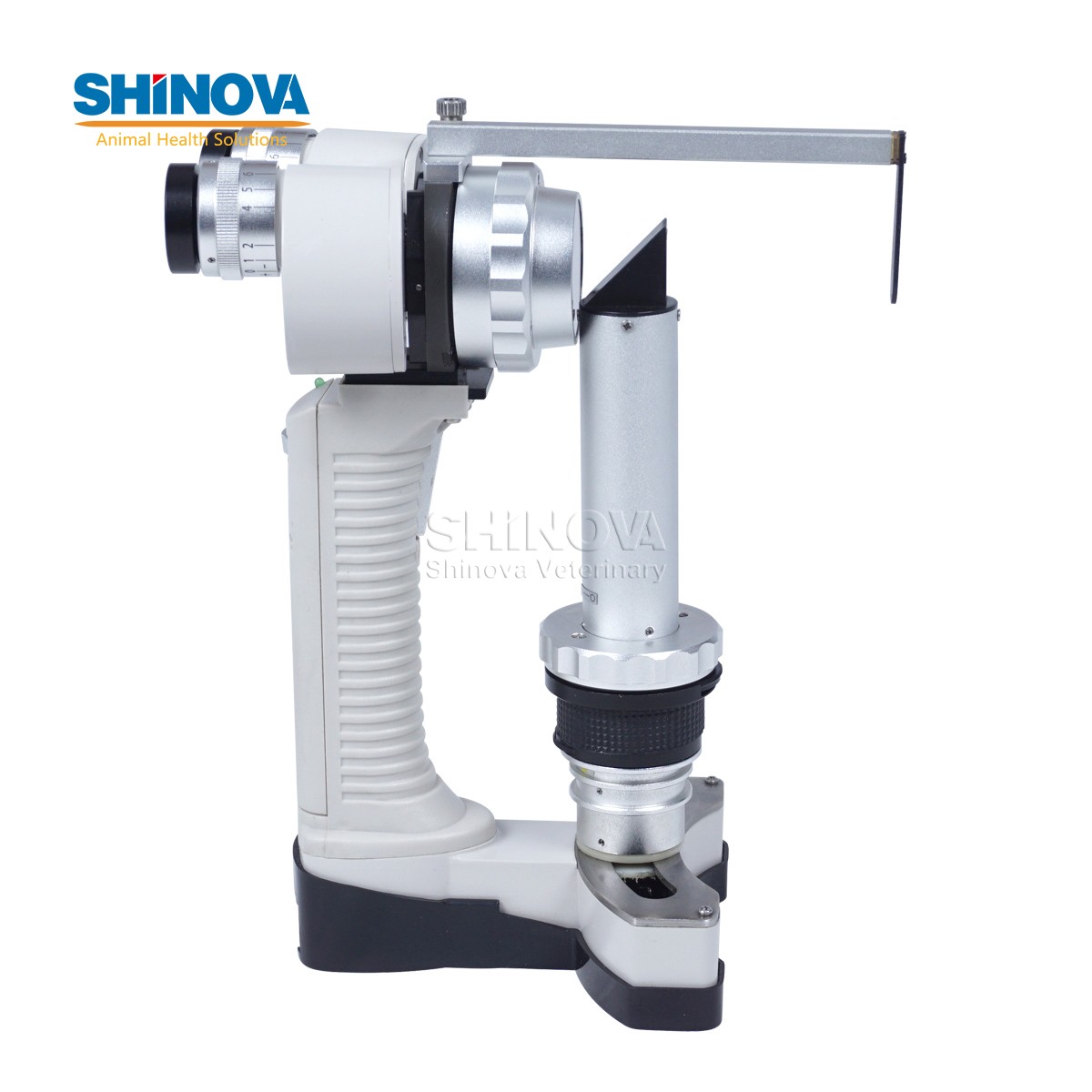

    • Veterinary Handheld Slit Lamp (3-Magnification)

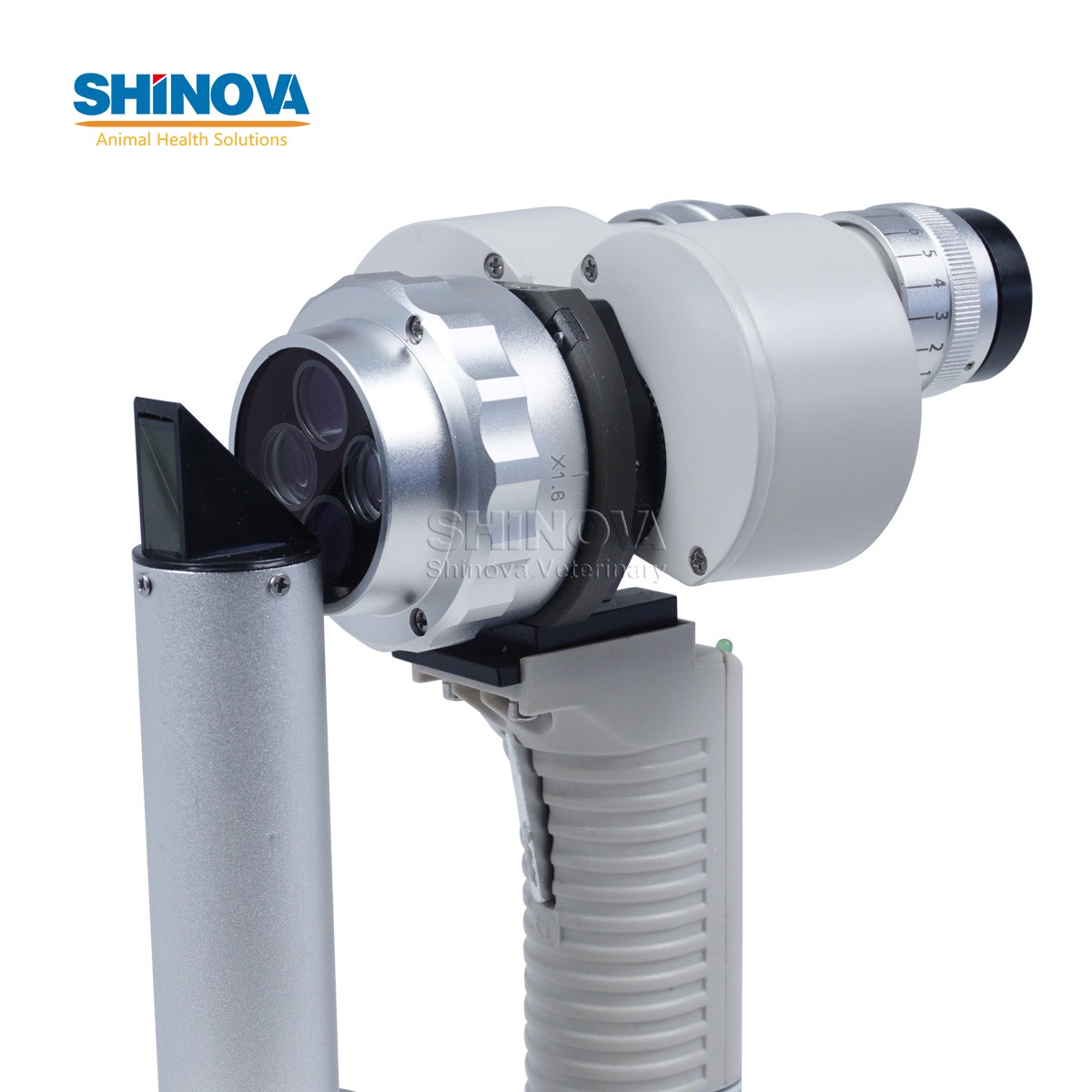

    • Veterinary Handheld Slit Lamp (3-Magnification)

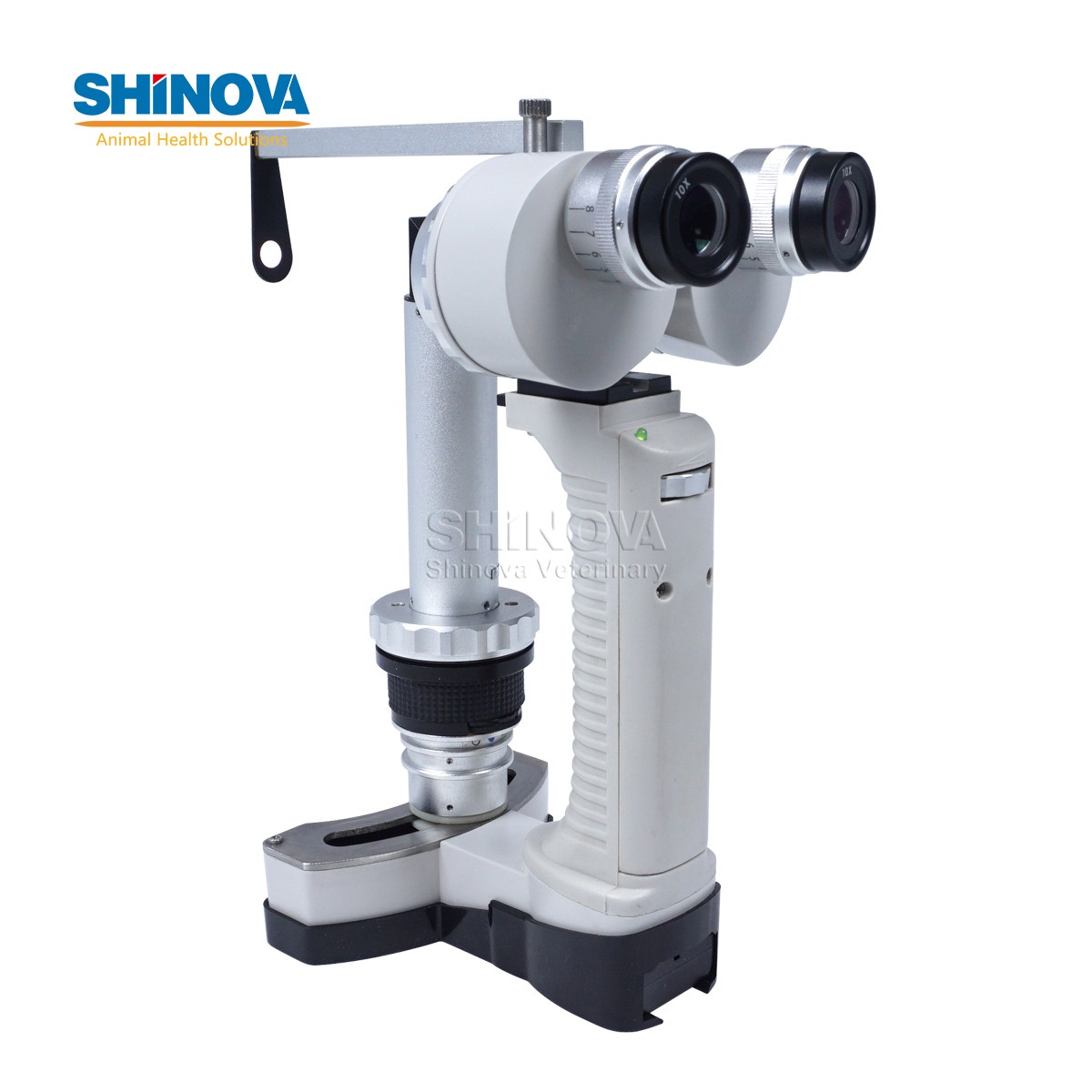

    • Veterinary Handheld Slit Lamp (3-Magnification)

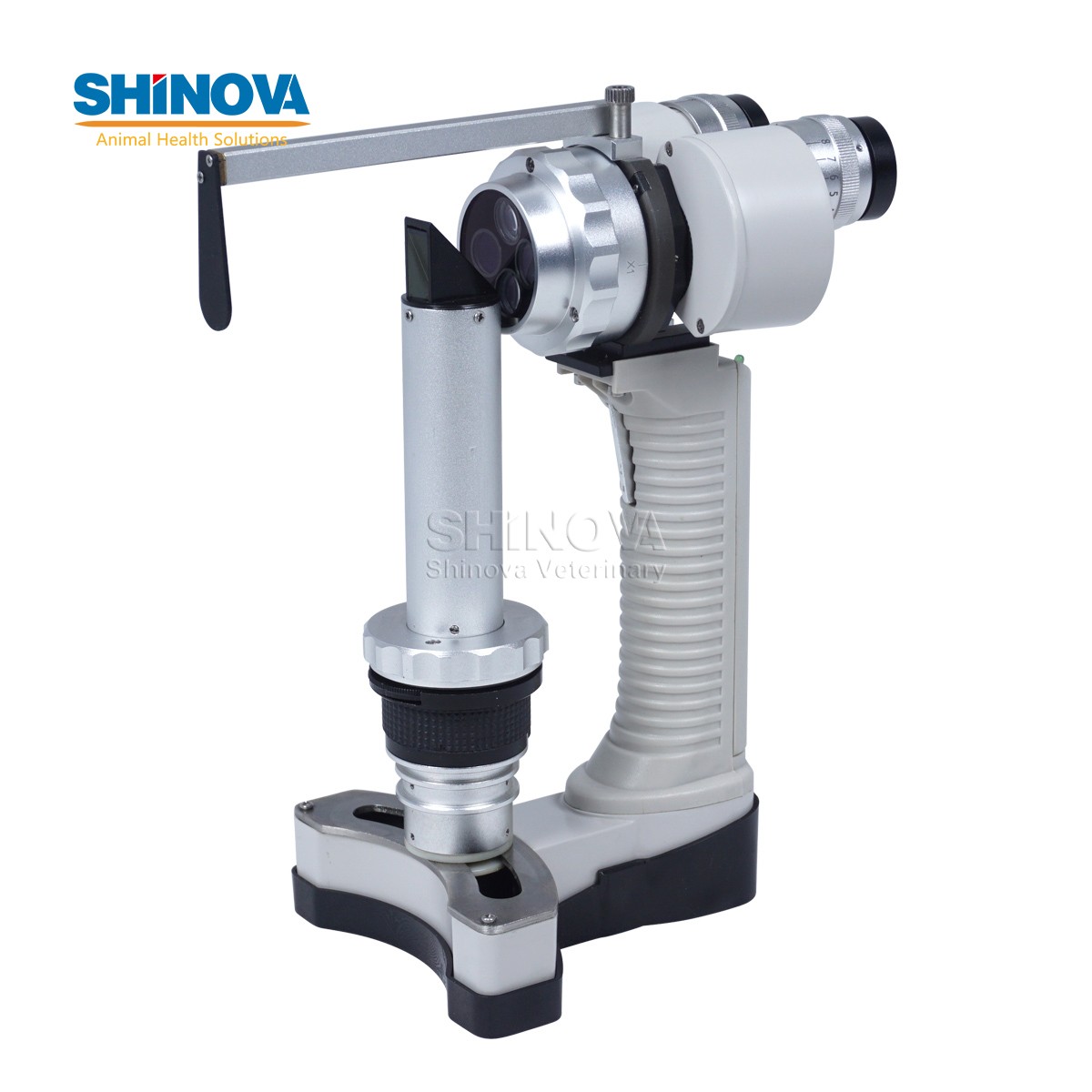

    • Veterinary Handheld Slit Lamp (3-Magnification)

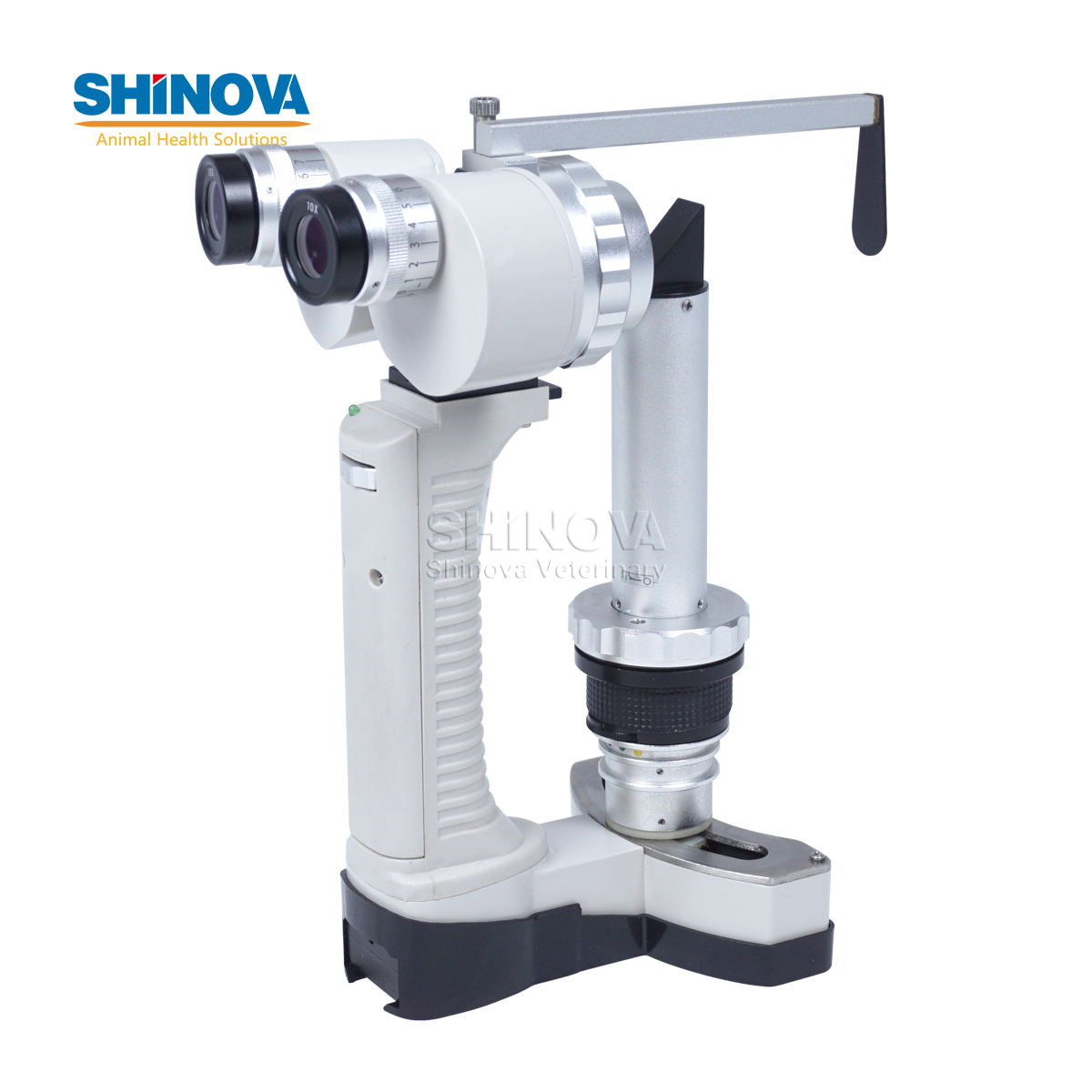

    • Veterinary Handheld Slit Lamp (3-Magnification)

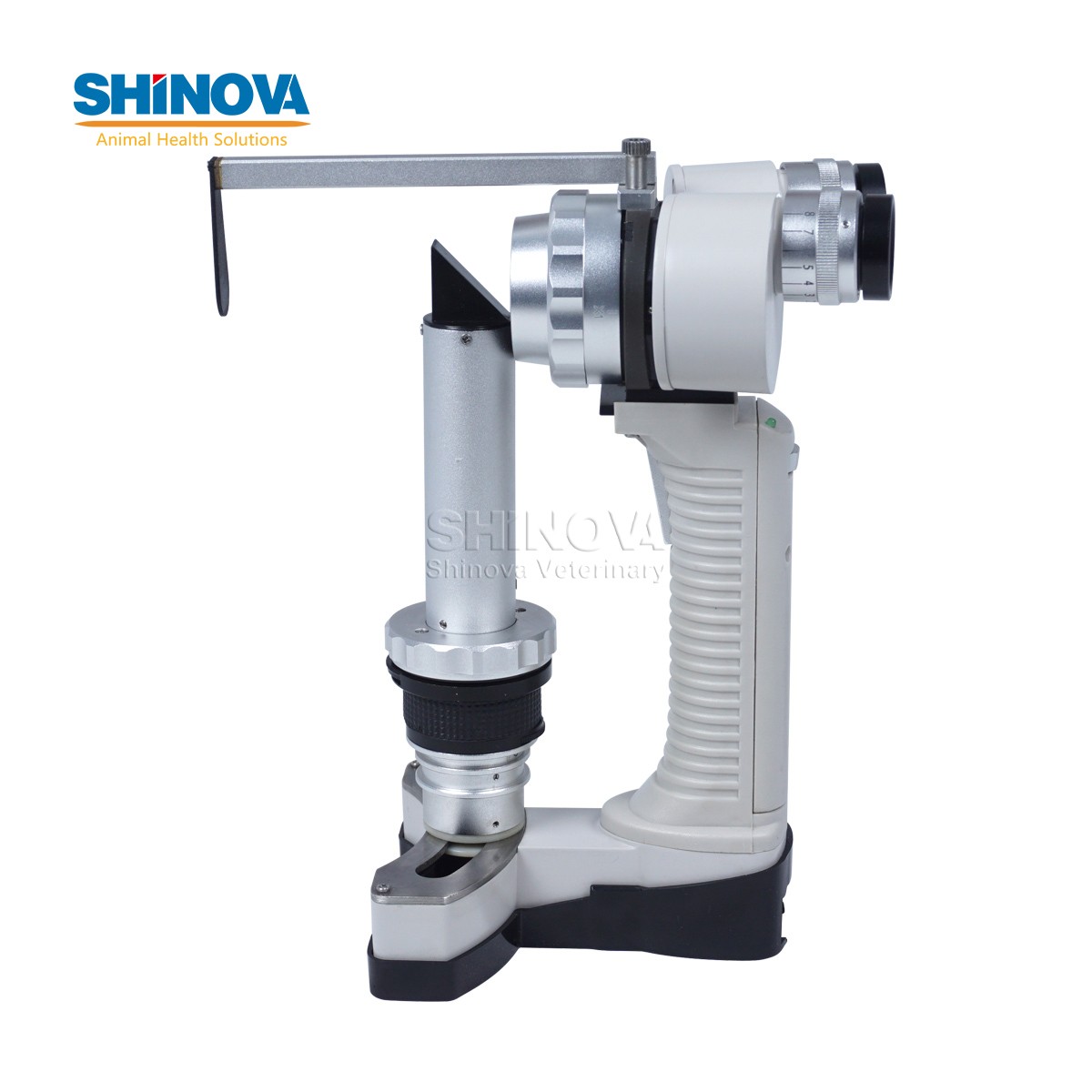

  • Veterinary Handheld Slit Lamp (3-Magnification)
    SHINOVA
    SL-PC
    Ophthalmology
    Get Latest Price!
    Within 15 days against payment
    T/T, L/C, Paypal, Cash, Other
    28*33*47
    5.00
    Cat, Dog, Equine, Bovine
    Exam Room

Descriptions

1. Portable slit lamp adopts high-brightness, cold-light illuminator, without external power supply.

2. High-brightness LED, cold-light illuminator, its brightness up to 15000 LUX, service lift more than 50000 hours

3. Sharp slit, the width can be adjusted continuously

4. Telescopic forehead-rest, easier to observe and adjust the diopter.

5. Easier to adjust the magnification by revolvable objective lens

6. Small and light, only 700g including battery

7. Different filter, Heat filter, light-reducing filter, red filter and cobalt filter

8. Full power supplied by battery can drive the slit lamp for 5-6 hours.


Specifications

  Model Item

SL-PA

SL-PB

SL-PC

  Microscope

  Microscope Type

Converging

  Objective Lens

1.0X

1.0X1.6X

1.0X1.6X

  Eyepiece

10X

10X

10X16X

  Total Magnifications

10X

10X16X

10X16X25.6X

  Working Distance

81mm

  Intraocular Distance

45mm―78mm

  Diopter Adjustment

-8D―+8D

  Illumination

  Slit Width

0―12mm Continuous

  Slit Height

1-12mm

1-12mm

1-12mm

  Slit Angle

12mm

ф0.2mmф1mmф5mmф12mm

  Filters

Heat Absorption; Yellow; Redfree(Green); Cobalt Blue

  Illumination Bulb

High-Brightness White LED

  Brightness

≥30000Lux

  Power

  LED Working Voltage

d . c . 3 V

  Battery

Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously

  Weight and Dimension

  Dimension

169.5mm×109.5mm×228.5mm

  Weight

≤700g(Including Battery)
