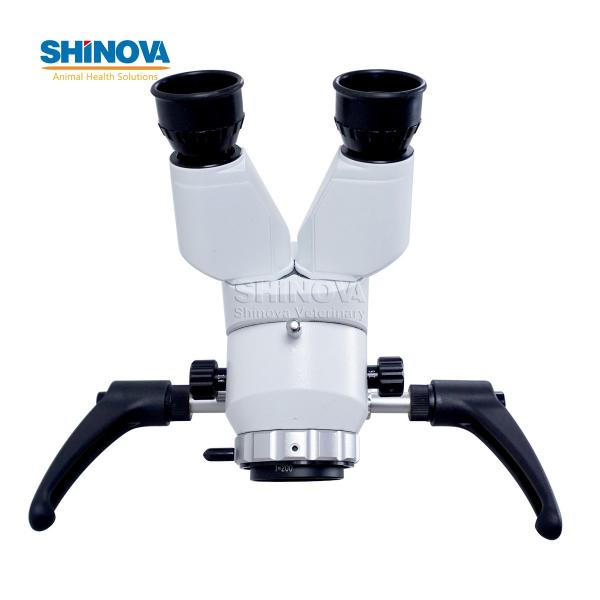

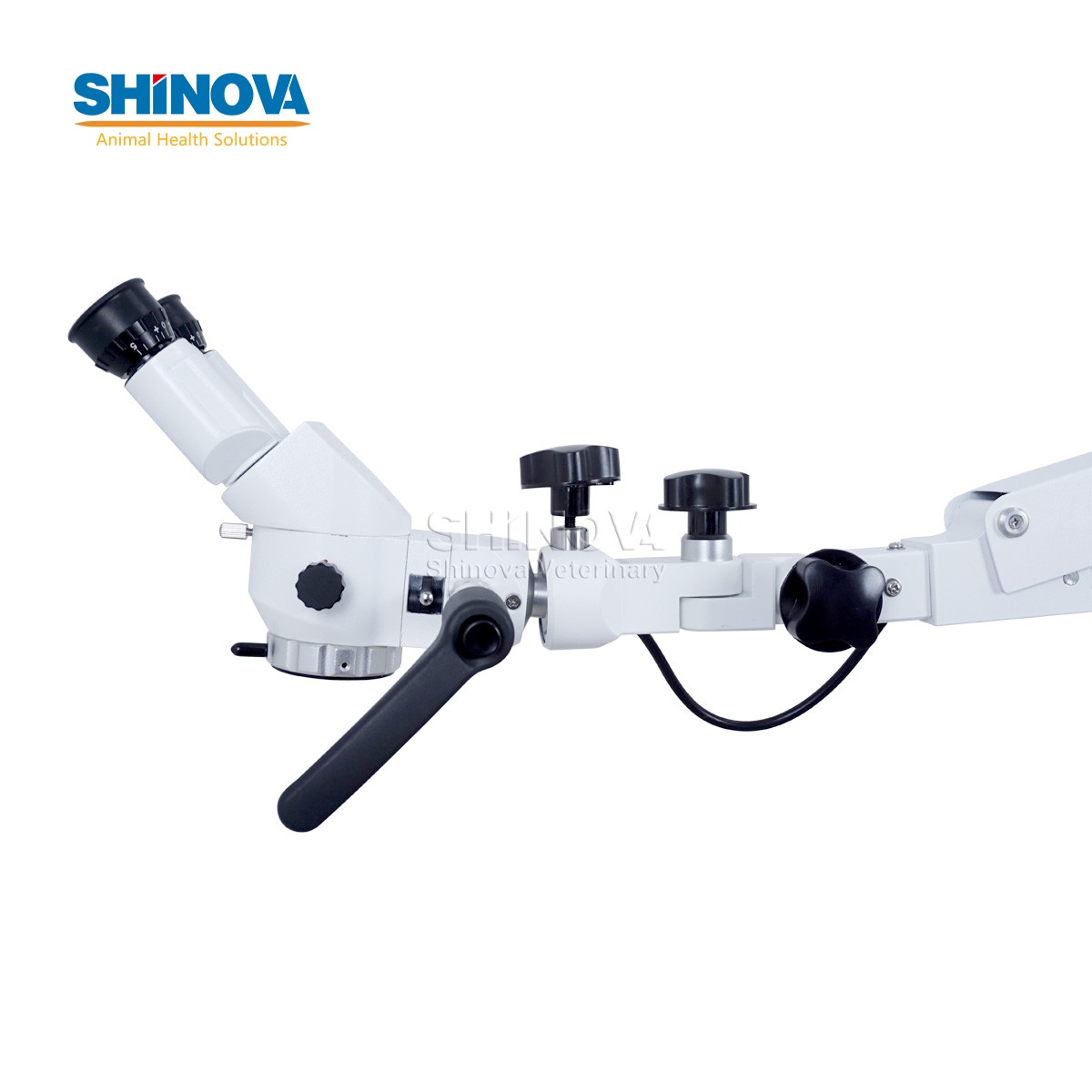

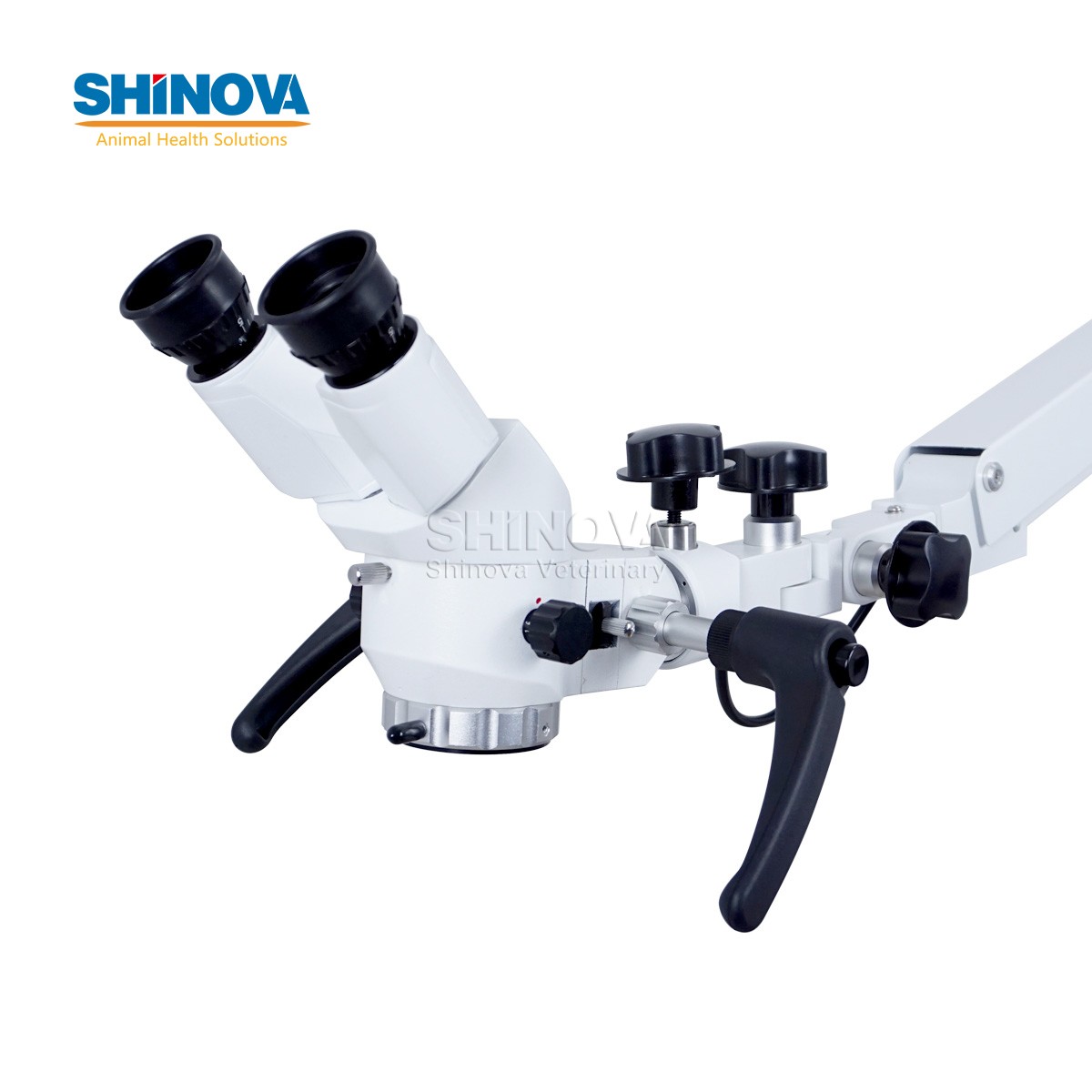

    Shinova
    EOM-200T
    Operating Microscope
    Get Latest Price!
    1 Pieces
    Within 15 days against payment
    T/T, L/C, Paypal, Cash, Other
    77*58*22
    18.00
    Cat,Dog,Equine
    Operating Room

Descriptions

EOM Series Veterinary Operating Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ENT, dentistry, ophthalmology, gynecology and surgery.

Applications:
EOM-200S, EOM-200SB: Clinic applications for ENT
EOM-200T, EOM-200TB: Clinic applications for Dentistry and Ophthalmology

Specifications

Model

EOM-200S

EOM-200T

EOM-200SB

EOM-200TB

Binocular observation

Straight

45º Tilted

Straight

45º Tilted

Observation magnification

6X

Interpupillary distance

50mm-80mm

Diopter

±5D

Magnification changer

3-step magnification change: 0.6X, 1X, 1.6X

Focal length of objective

2 objectives: F=200mm, 300mm

Total magnification

3X-12X

Linear field

60.8-15.8mm

Fine focusing range

10mm

Filter

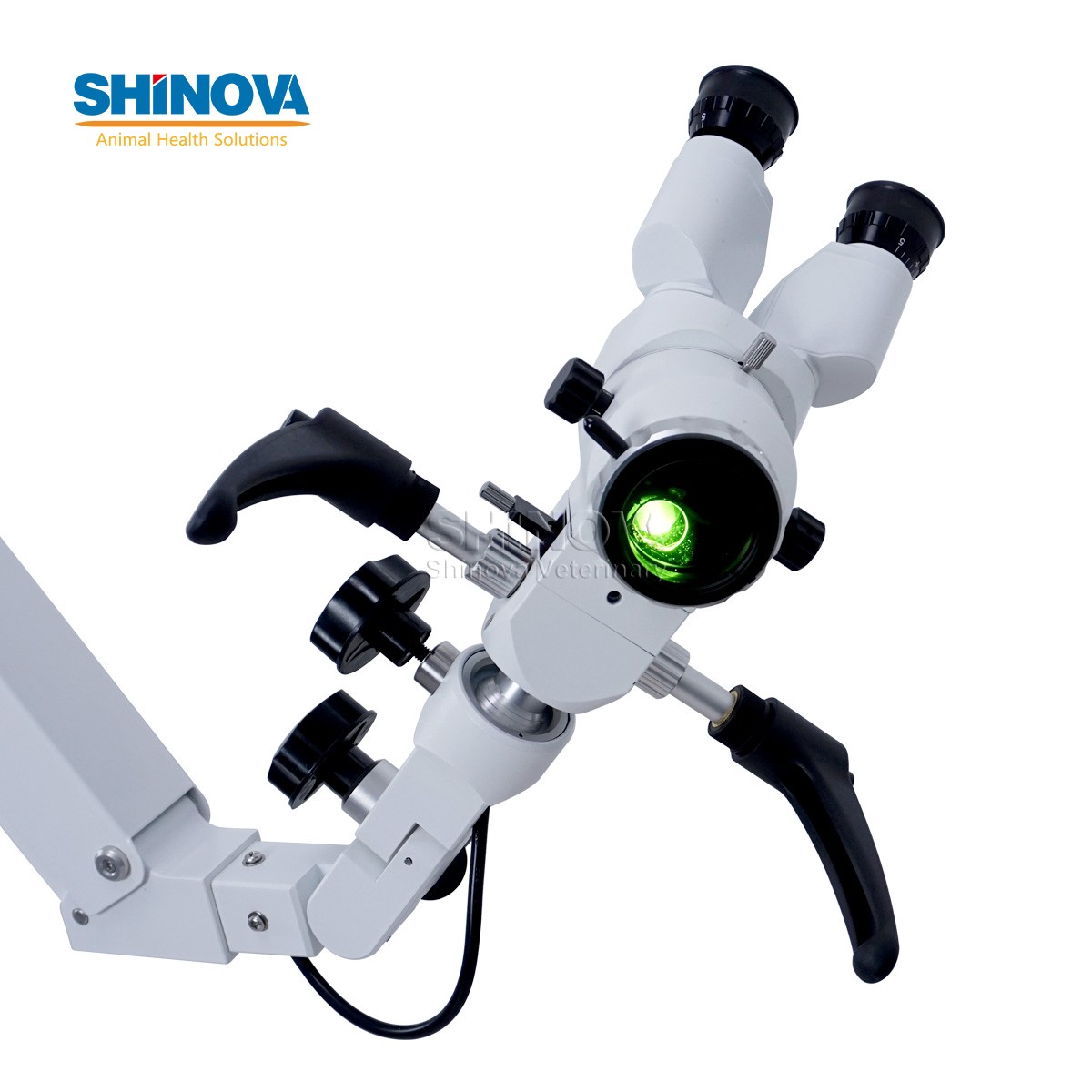

Built-in green and yellow filters

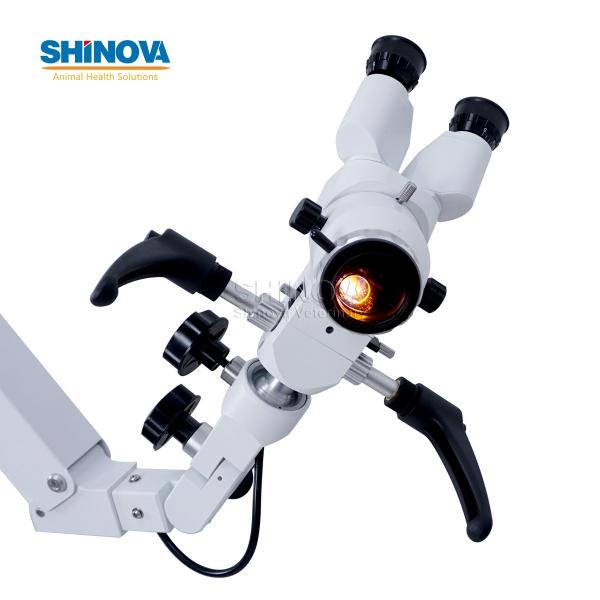

Illumination system

Coaxial illumination with cold light source fiber-optic cable, brightness adjustable

Lamp

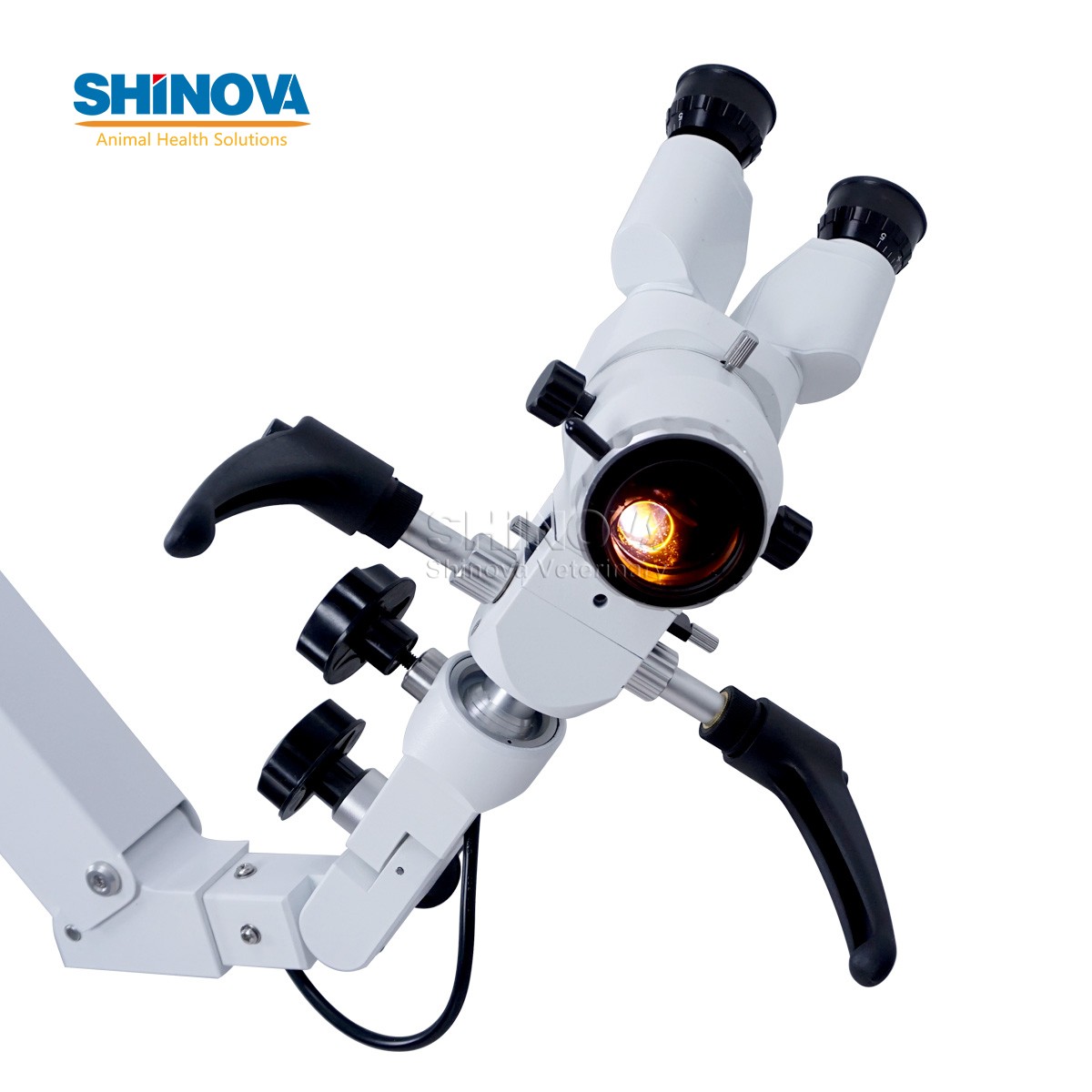

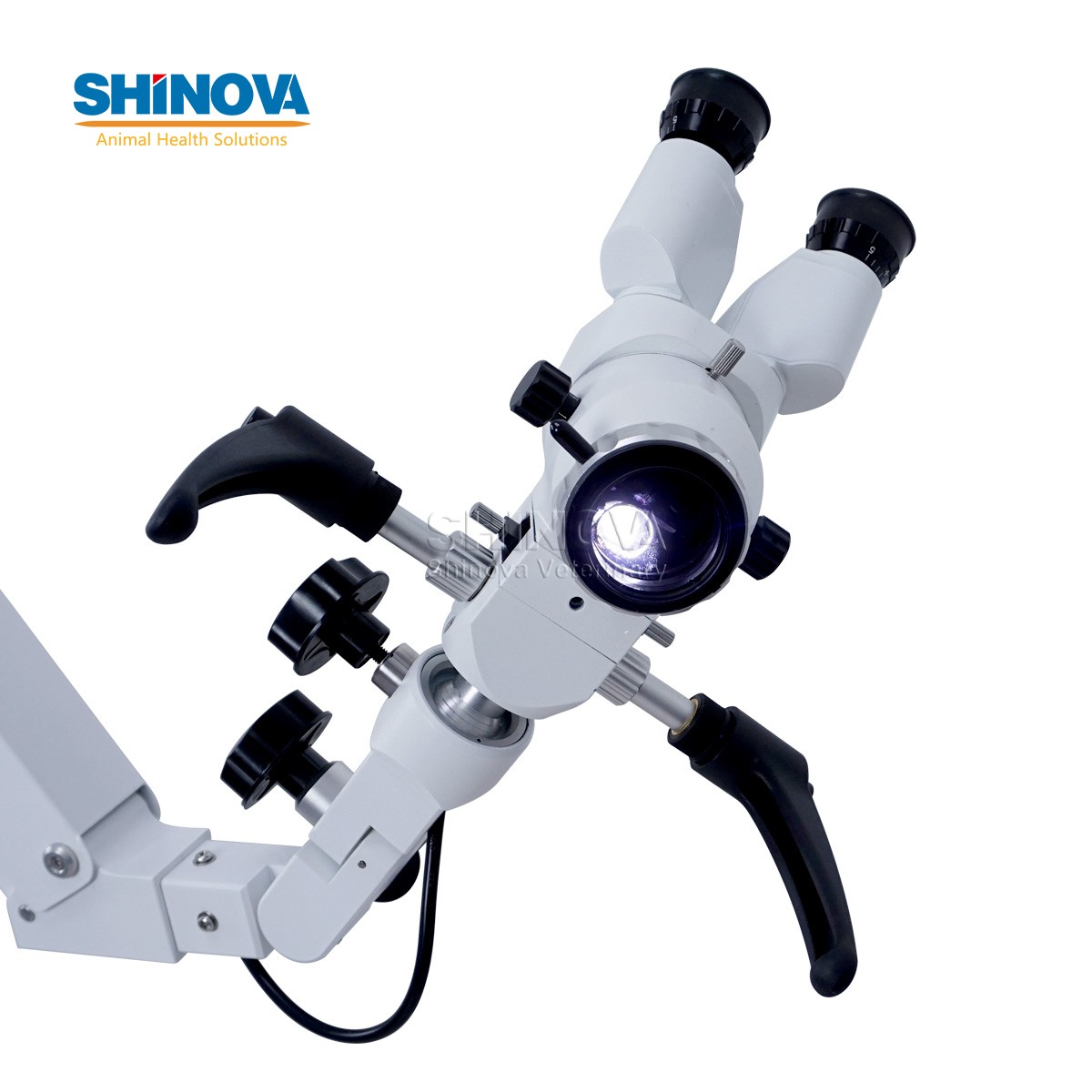

21V 150W halogen lamp (10W LED optional)

Power supply

AC 220V/50Hz, or 110V/60Hz

Beamsplitter

No

50:50 Beamsplitter

TV adapter

C-mount 1/3 inch CCD camera attachable

Balancing arm

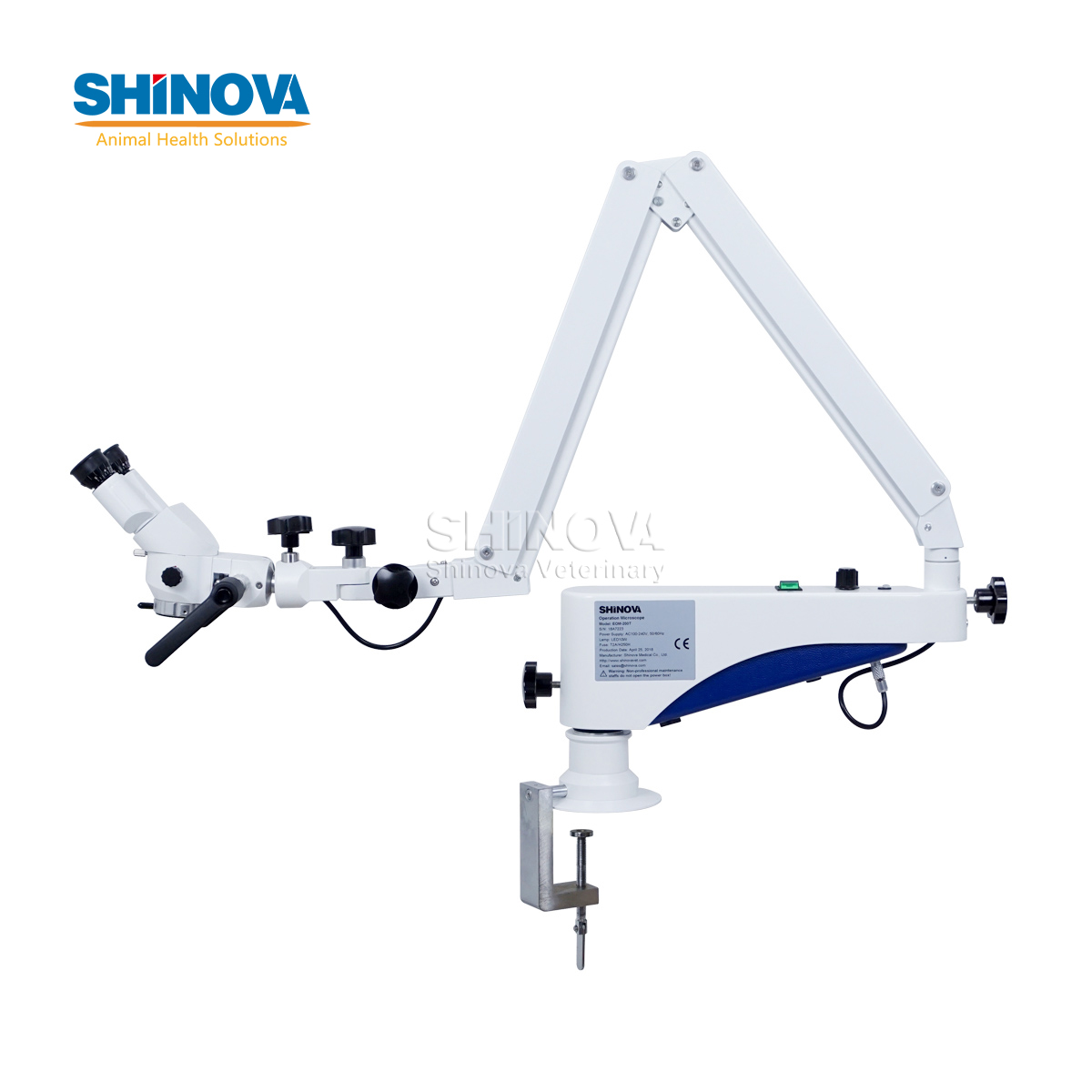

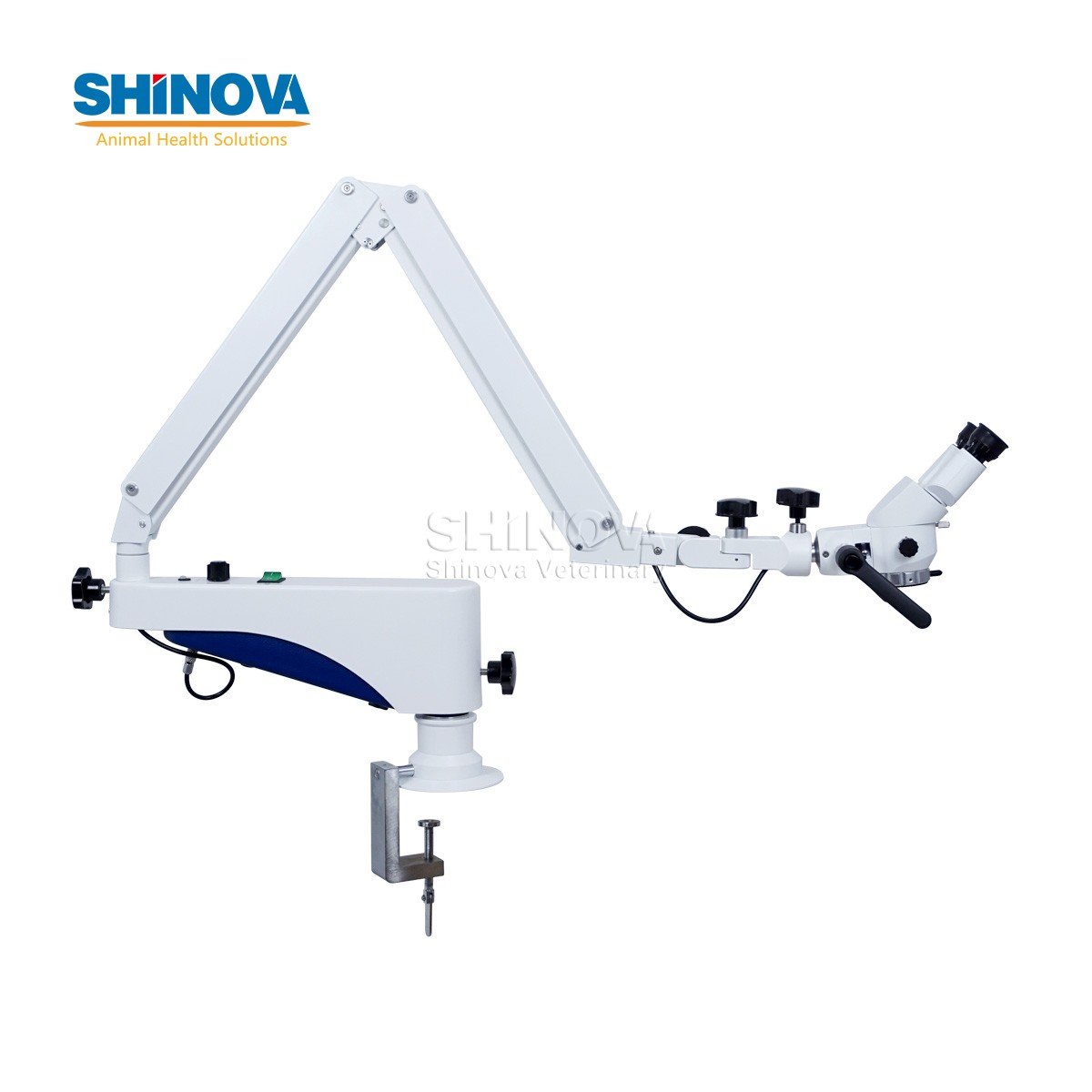

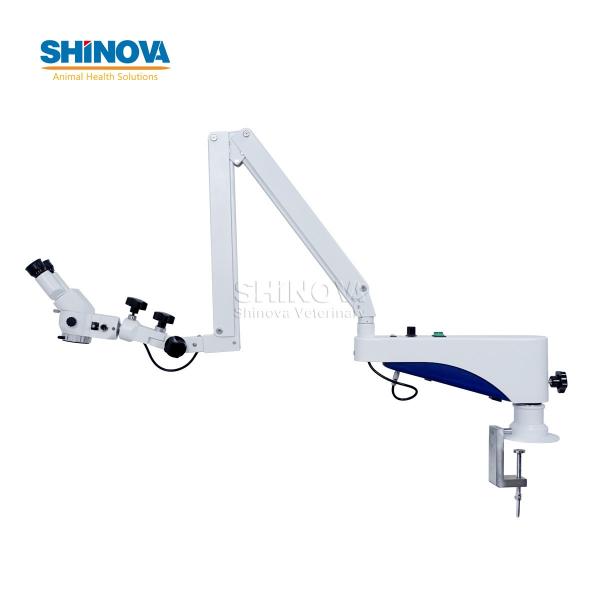

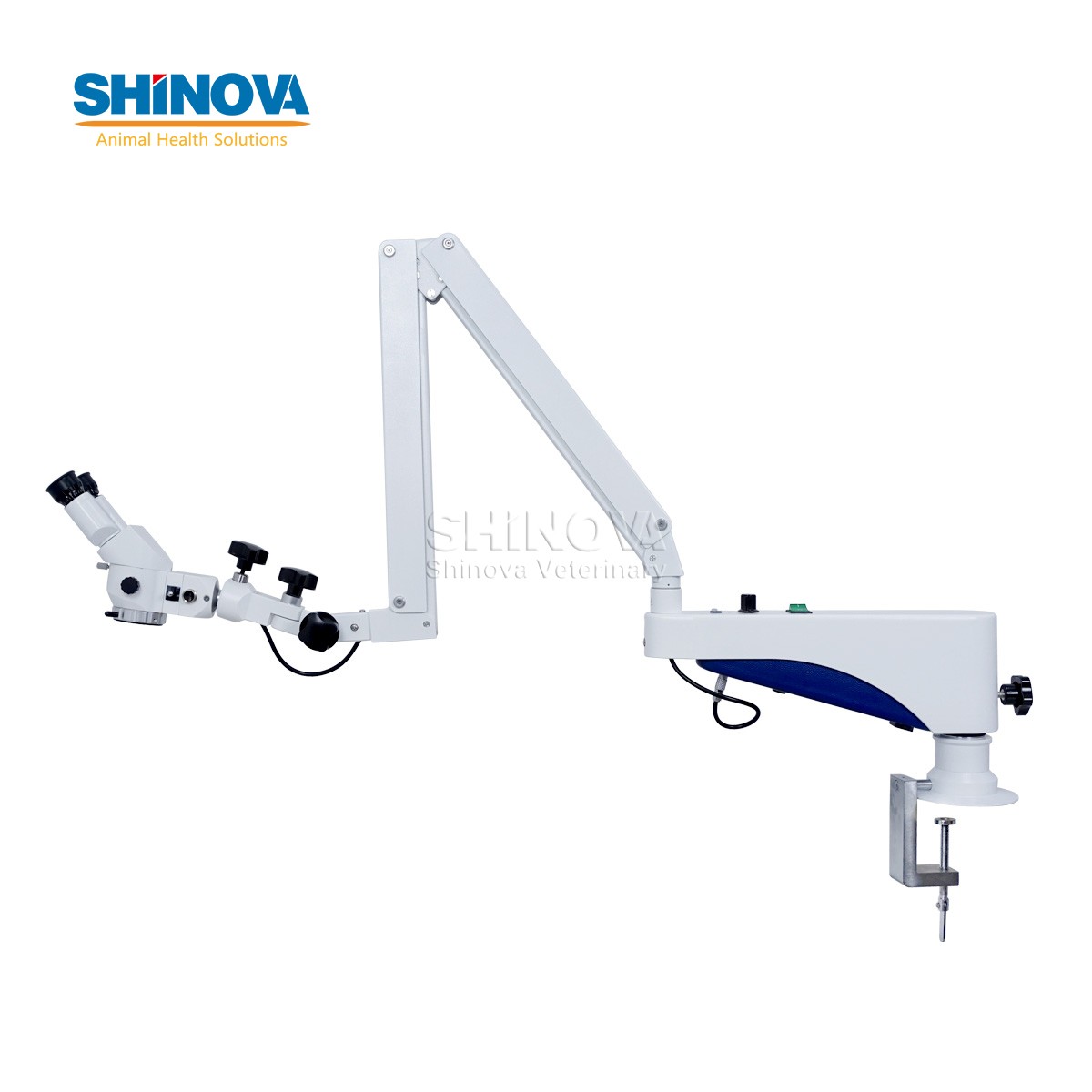

With 2-part arm and table mount

With 2-part arm, counterweight adjustable and can be locked. With floor stand.

Optional

Objective F=250mm & F=400mm, Wall mount

Demonstrator, Camera, Photo adapter, Monitor, Objective F=250mm & F=400mm, Wall mount, Table mount
