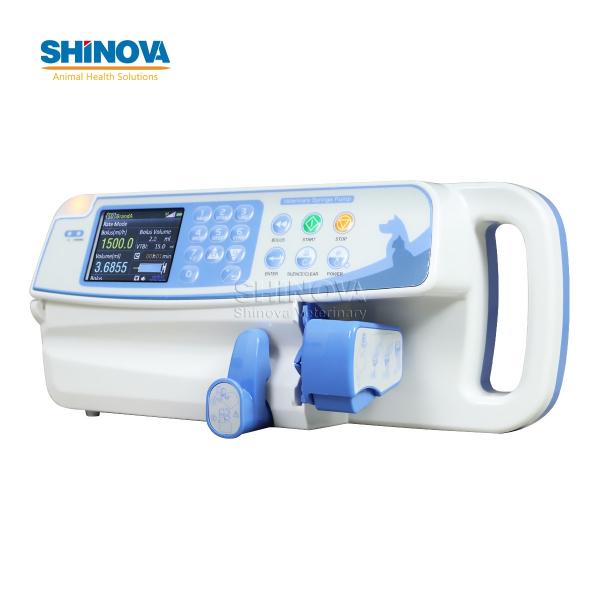

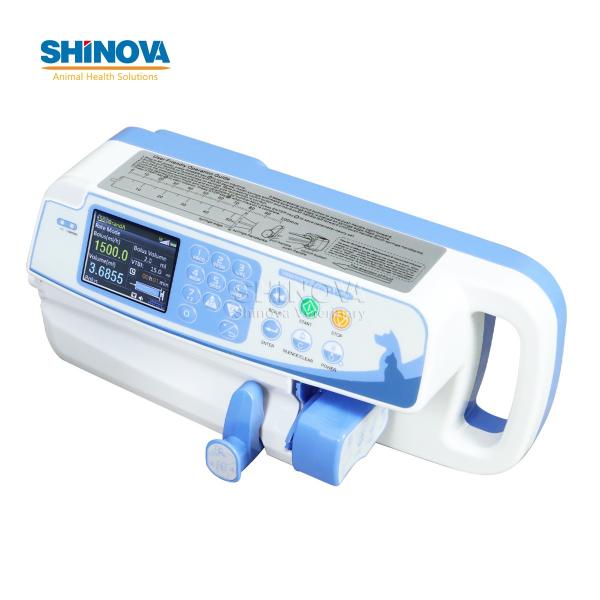

Descriptions

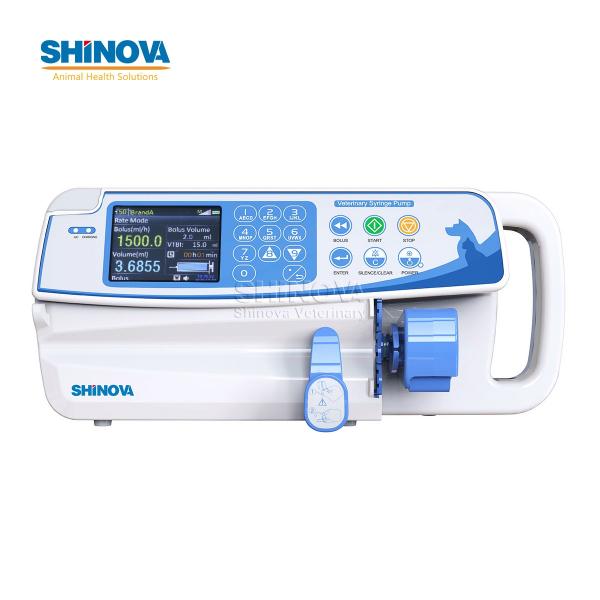

Large & Colorful LCD displayHistory records

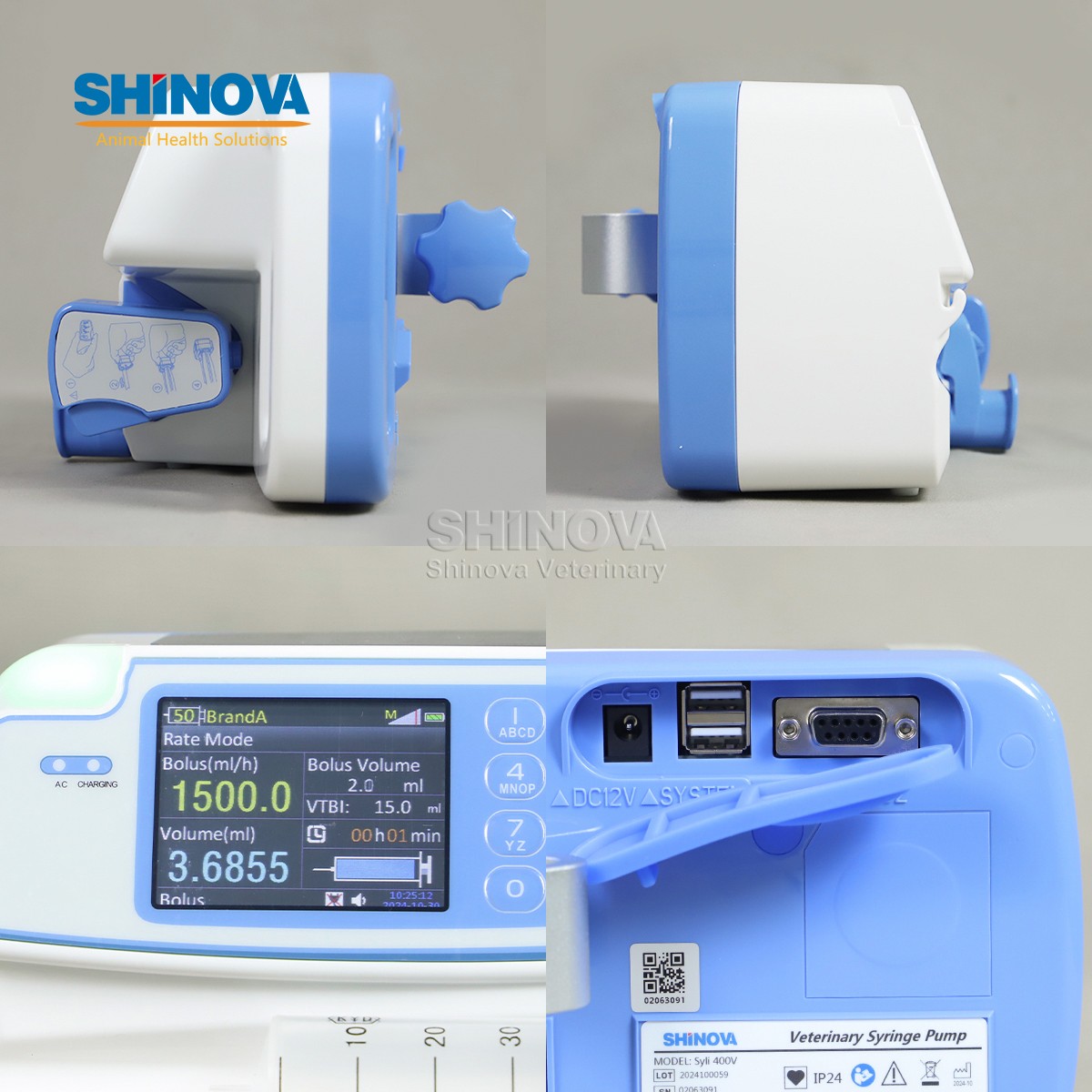

90 degree rotatable pole clamp convenient for horizontal bar & vertical IV pole
Unique syringe intelligent recognition technology
Dynamically display the pressure
Double CPU ensuring safe infusion
RS232 interface
Adjustable buzzer volume
Anti-bolus function
Various Visual and audible alarms
Specifications
Infusion mode
Dose mode, Time mode, Rate mode

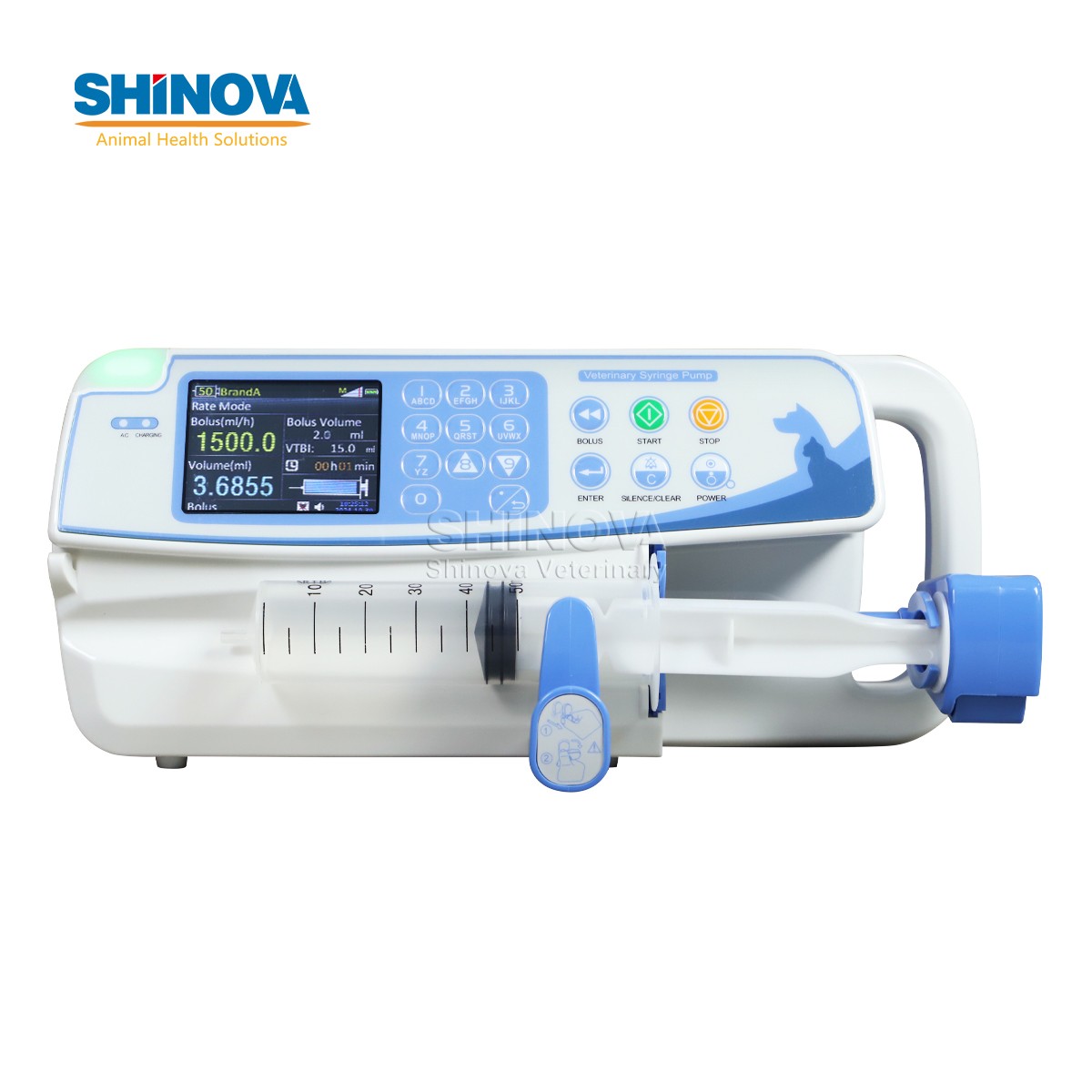

Applicable syringes
Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml
Accuracy
±2% (after syringe correct calibration)
Infusion rate
5ml syringe: 0.1 -150ml/h
10ml syringe: 0.1 -300ml/h
20ml syringe: 0.1 -600ml/h
30ml syringe: 0.1 -900ml/h
50ml syringe: 0.1 -1500ml/h
Volume to be infused (VTBI)
0～1000 ml
Volume Infused (∑)
0～9999.9 ml
KVO rate
0.1-2 ml/h adjustable; default value: 0.1ml/h
Bolus rate
5ml syringe: 100-150ml/h
10ml syringe: 100-300ml/h
20ml syringe: 100-600ml/h
30ml syringe: 100-900ml/h
50ml syringe: 100 -1500ml/h
Alarms
Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe
disengaged, No AC power supply, Battery exhausted, Malfunction etc.
Power supply
AC: 100~240V, 50/60Hz
DC: 12V ±1.2V
Power consumption
25VA
Nurse call alarm
Optional
Classification
Class I, type CF
Dimensions
300(L)x 130(H)x 125 (W)mm, not including pole clamp
Net weight
1.8KG
Waterproof Level
IPX3
Occlusion pressure
(40.0-160.0)kpa
3 adjustable occlusion pressure settings
low, middle and high
Battery
Rechargeable Li polymer battery,7.4V, 1900mAh
Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃
Battery recharge time
10h with power on, 3h with power off
Operating conditions
Temperature: 5℃~40℃,
Relative humidity: 10~95%,
Atmosphere pressure: 86～106kPa
Transport conditions
Temperature: -20℃~+60℃,
Relative humidity: 10~95%,
Atmosphere pressure: 50～106kPa
Storage conditions
Temperature: -20℃~+45℃,
Relative humidity: 10~95%,
Atmosphere pressure: 50～106kPa
